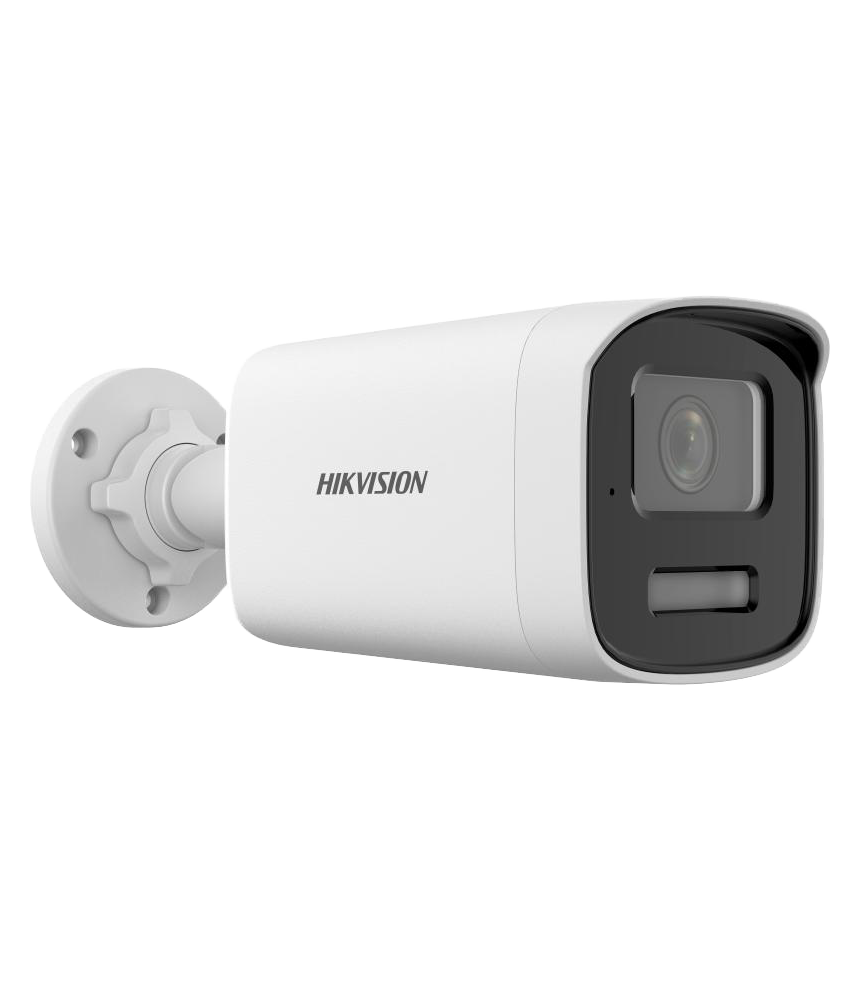

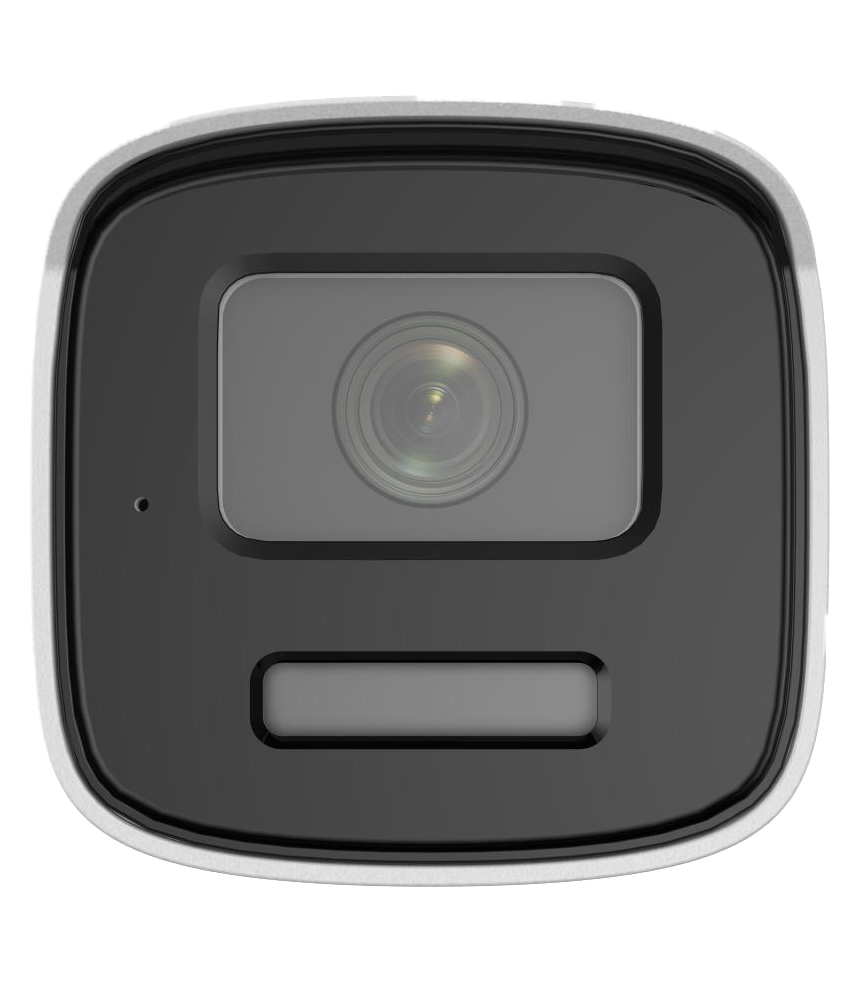

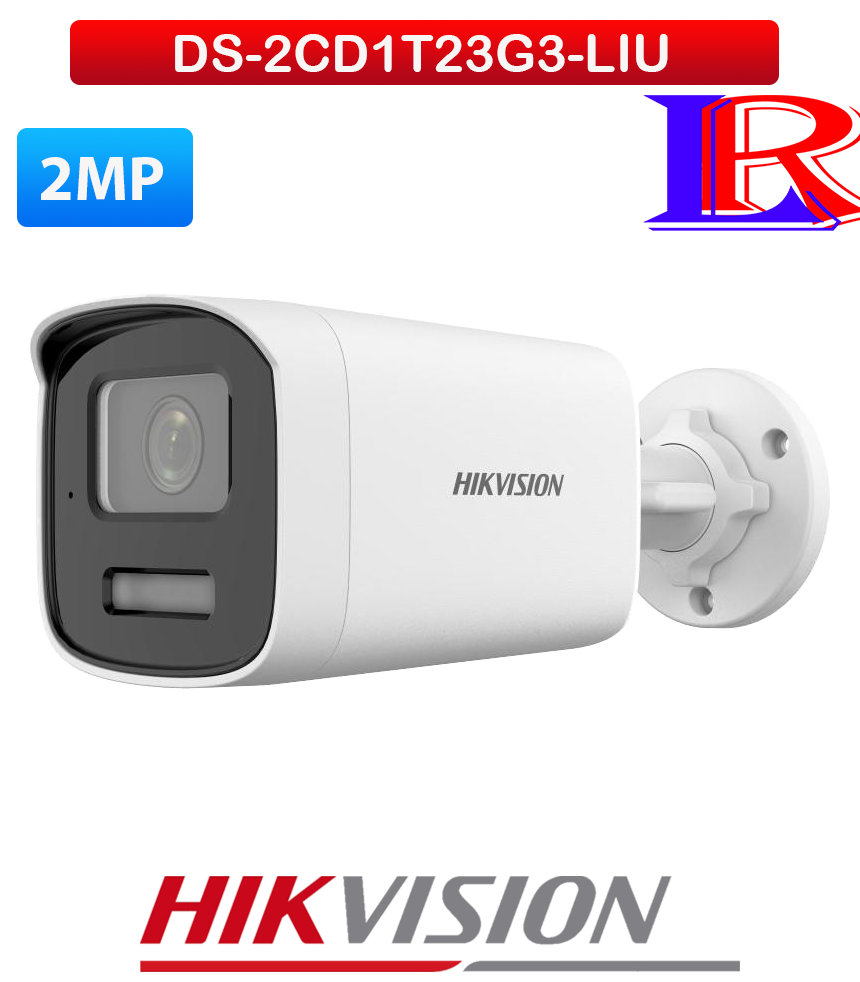

Hikvision DS-2CD1T23G3-LIU 2MP Smart Hybrid Light Bullet IP Camera Sri Lanka
| Camera | ||
| Image Sensor | 1/2.9โณ Progressive Scan CMOS | |
| Max. Resolution | 1920 ร 1080 | |
| Min. Illumination | Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR | |
| Shutter Time | 1 s to 1/100,000 s | |
| Day & Night | IR cut filter | |
| Angle Adjustment | Pan: 0ยฐ to 360ยฐ,tilt: 0ยฐ to 180ยฐ,rotate: 0ยฐ to 360ยฐ | |
| Lens | ||
| Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional | |
| Focal Length & FOV | 2.8 mm, horizontal FOV 104ยฐ, vertical FOV 57ยฐ, diagonal FOV 121ยฐ 4 mm, horizontal FOV 84ยฐ, vertical FOV 45ยฐ, diagonal FOV 100ยฐ 6 mm, horizontal FOV 52ยฐ, vertical FOV 28ยฐ, diagonal FOV 60ยฐ | |
| Lens Mount | M12 | |
| Iris Type | Fixed | |
| Focus | NA | |
| Aperture | F1.6 | |
| Depth of Field | 2.8 mm: 1.1 m to โ 4 mm: 1.2 m to โ 6 mm: 2.9 m to โ | |
| DORI | ||
| DORI | 2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m 4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m 6 mm, D: 91 m, O: 36 m, R: 18 m, I: 9 m | |
| Illuminator | ||
| Supplement Light Type | IR,White Light | |
| Supplement Light Range | Up to 50 m | |
| Smart Supplement Light | Yes | |
| IR Wavelength | 850 nm | |
| Video | ||
| Main Stream | 50 Hz: 25 fps (1920 ร 1080, 1280 ร 720) 60 Hz: 30 fps (1920 ร 1080, 1280 ร 720) | |
| Sub-Stream | 50 Hz: 25 fps (640 ร 480, 640 ร 360) 60 Hz: 24 fps (640 ร 480, 640 ร 360) | |
| Third Stream | NA | |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG | |
| Video Bit Rate | 32 Kbps to 8 Mbps | |
| H.264 Type | Baseline Profile,Main Profile,High Profile | |
| H.265 Type | Main Profile | |
| Bit Rate Control | CBR,VBR | |
| Scalable Video Coding (SVC) | YES | |
| Region of Interest (ROI) | 1 fixed regions for each stream | |
| Target Cropping | NO | |
| Audio | ||
| Audio Type | Mono sound | |
| Audio Compression | -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC | |
| Audio Bit Rate | -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) | |
| Audio Sampling Rate | -U: 8 kHz/16 kHz | |
| Environment Noise Filtering | -U: Yes | |
| Network | ||
| Protocols | DHCP,QoS,FTP,SSL/TLS,ICMP,RTSP,UDP,HTTPS,HTTP,D NS,IPv6,IPv4,IGMP,RTCP,RTP,DD NS,TCP/IP,UPnP,NTP,SMTP | |
| Simultaneous Live View | Up to 6 channels | |
| API | ISAPI,EZVIZ,ONVIF,ISUP,SDK | |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user | |
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) | |
| Network Storage | NO | |
| Client | iVMS-4200,Hik-Connect | |
| Web Browser | Plug-in required live view: Chrome 91+, Firefox 88+, Edge 91+ | |
| Image | ||
| Image Parameters Switch | Yes | |
| Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,AGC,adjustable by client software or web browser | |
| Day/Night Switch | Day,Night,Auto,Schedule | |
| Wide Dynamic Range (WDR) | Digital WDR | |
| SNR | โฅ 52 dB | |
| Image Enhancement | BLC,HLC,3D DNR | |
| Privacy Mask | 4 programmable polygon privacy masks | |
| Interface | ||
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port | |
| On-Board Storage | NA | |
| Built-in Microphone | Yes,1 built-in microphone | |
| Built-in Speaker | NA | |
| Audio | NA | |
| Alarm | NA | |
| Reset Key | NA | |
| Event | ||
| Basic Event | Video tampering alarm, motion detection (support alarm triggering by specified target types (human, vehicle)), exception | |
| Smart Event | NO | |
| Linkage | Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture | |
| Deep Learning Function | ||
| Perimeter Protection | NO | |
| Face Capture | NO | |
| General | ||
| Power | 12 VDC ยฑ 25%, 0.5 A, max. 6.0 W,ร5.5 mm coaxial power plug, PoE: IEEE 802.3af, Class 3, max. 7.0 W | |
| Dimension | 83.7 mm ร 81 mm ร 201.9 mm (3.30โณ ร 3.19โณ ร 7.95โณ) | |
| Package Dimension | 260 mm ร 125 mm ร 125 mm (10.24โณ ร 4.92โณ ร 4.9โณ) | |
| Weight | Approx. 390 g (0.86 lb.) | |
| With Package Weight | Approx. 550 g (1.213 lb.) | |
| Storage Conditions | -30 ยฐC to 60 ยฐC (-22 ยฐF to 140 ยฐF). Humidity 95% or less (non-condensing) | |
| Startup and Operating Conditions | -30 ยฐC to 60 ยฐC (-22 ยฐF to 140 ยฐF). Humidity 95% or less (non-condensing) | |
| Language | English, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German | |
| General Function | Heartbeat,mirror,password reset via email,password protection,a nti-banding | |
| Flashing Light | NA | |
| Approval | ||
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 | |
| Safety | CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 | |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 | |
| Protection | IP67: IEC 60529-2013 | |
