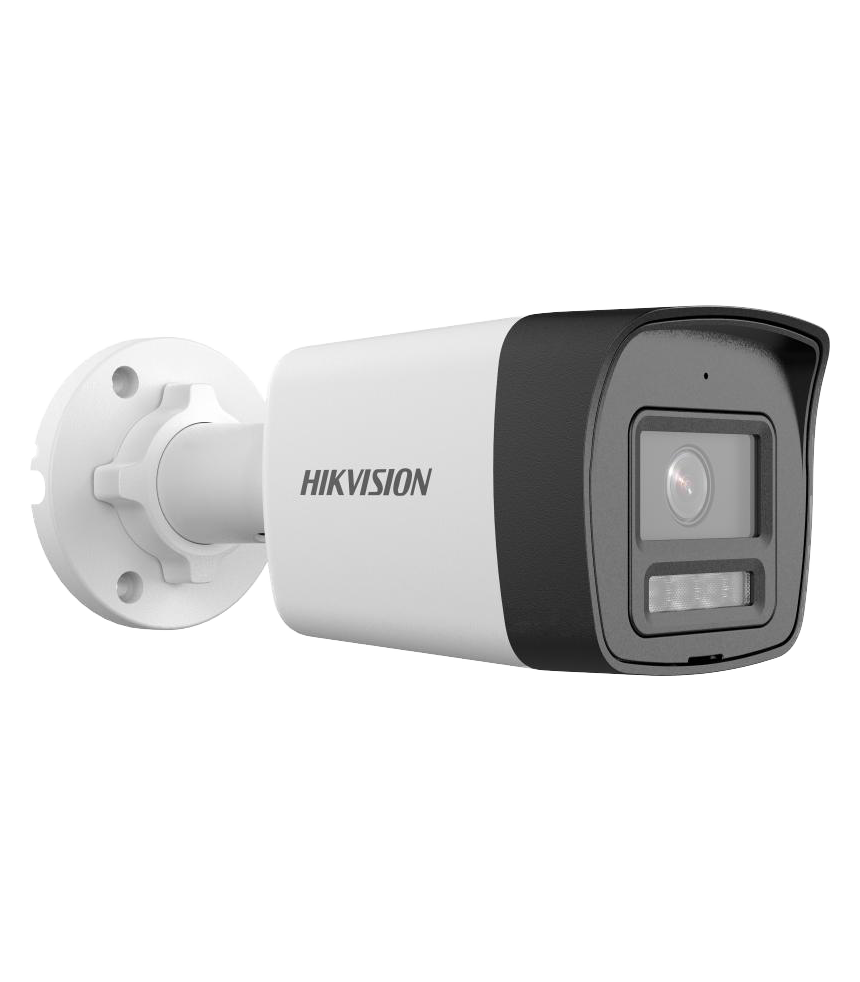

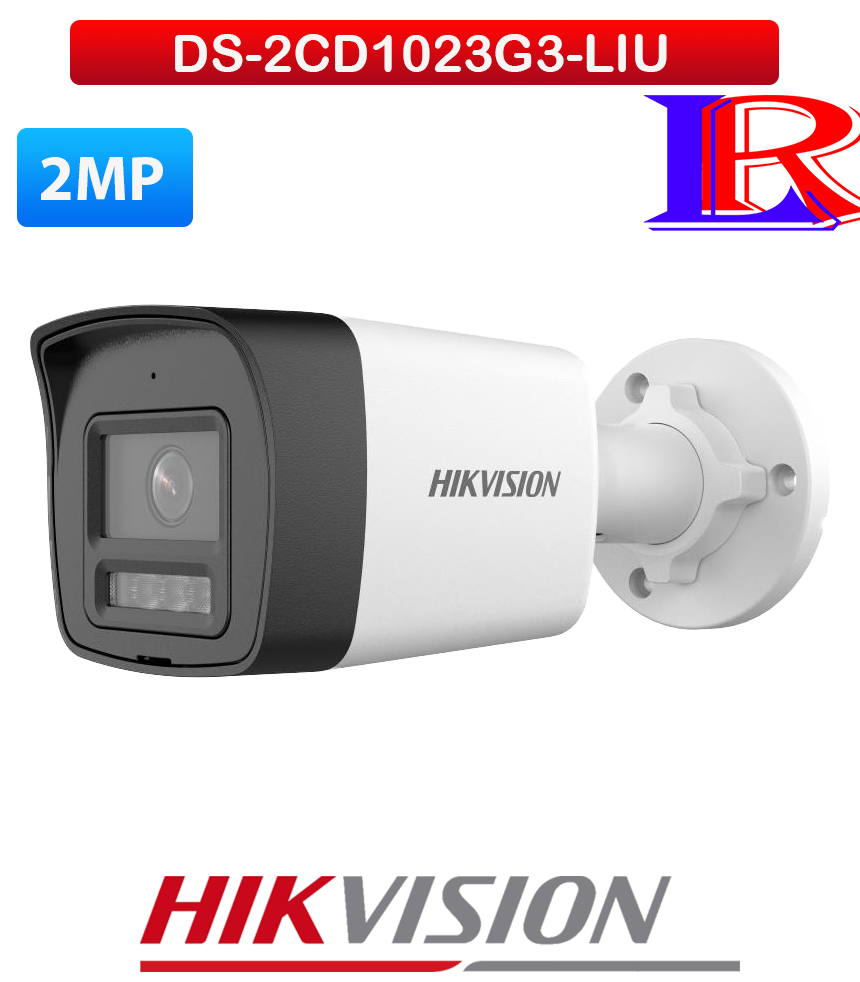

Hikvision DS-2CD1023G3-LIU 2MP Smart Hybrid Light IP Camera Sri Lanka
| Camera | ||
| Image Sensor | 1/2.9โณ Progressive Scan CMOS | |
| Max. Resolution | 1920 ร 1080 | |
| Min. Illumination | Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR | |
| Shutter Time | 1 s to 1/100,000 s | |
| Day & Night | IR cut filter | |
| Angle Adjustment | Pan: 0ยฐ to 360ยฐ,tilt: 0ยฐ to 90ยฐ,rotate: 0ยฐ to 360ยฐ | |
| Lens | ||
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional | |
| Focal Length & FOV | 2.8 mm, horizontal FOV 104ยฐ, vertical FOV 57ยฐ, diagonal FOV 121ยฐ 4 mm, horizontal FOV 84ยฐ, vertical FOV 45ยฐ, diagonal FOV 100ยฐ | |
| Lens Mount | M12 | |
| Iris Type | Fixed | |
| Focus | NA | |
| Aperture | F1.6 | |
| Depth of Field | 2.8 mm: 1.1 m to โ 4 mm: 1.2 m to โ | |
| DORI | ||
| DORI | 2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m 4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m | |
| Illuminator | ||
| Supplement Light Type | IR,White Light | |
| Supplement Light Range | Up to 30 m | |
| Smart Supplement Light | Yes | |
| IR Wavelength | 850 nm | |
| Video | ||
| Main Stream | 50 Hz: 25 fps (1920 ร 1080, 1280 ร 720) 60 Hz: 30 fps (1920 ร 1080, 1280 ร 720) | |
| Sub-Stream | 50 Hz: 25 fps (640 ร 480, 640 ร 360) 60 Hz: 24 fps (640 ร 480, 640 ร 360) | |
| Third Stream | NA | |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG | |
| Video Bit Rate | 32 Kbps to 8 Mbps | |
| H.264 Type | Baseline Profile,Main Profile,High Profile | |
| H.265 Type | Main Profile | |
| Bit Rate Control | CBR,VBR | |
| Scalable Video Coding (SVC) | YES | |
| Region of Interest (ROI) | 1 fixed regions for each stream | |
| Target Cropping | NO | |
| Audio | ||
| Audio Type | Mono sound | |
| Audio Compression | -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC | |
| Audio Bit Rate | -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) | |
| Audio Sampling Rate | -U: 8 kHz/16 kHz | |
| Network | ||
| Protocols | DHCP,QoS,FTP,SSL/TLS,ICMP,RTSP,UDP,HTTPS,HTTP,DNS,IPv6,IPv4,IGMP,RTCP ,RTP,DD NS,TCP/IP,UPnP,NTP,SMTP | |
| Simultaneous Live View | Up to 6 channels | |
| API | ISAPI,EZVIZ,ONVIF,ISUP,SDK | |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user | |
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) | |
| Network Storage | NO | |
| Client | iVMS-4200,Hik-Connect | |
| Web Browser | Plug-in required live view: Chrome 91+, Firefox 88+, Edge 91+ | |
| Image | ||
| Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,AGC,adjustable by client software or web browser | |
| Day/Night Switch | Day,Night,Auto,Schedule | |
| Wide Dynamic Range (WDR) | Digital WDR | |
| SNR | โฅ 52 dB | |
| Image Enhancement | BLC,HLC,3D DNR | |
| Privacy Mask | 4 programmable polygon privacy masks | |
| Interface | ||
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port | |
| On-Board Storage | NA | |
| Built-in Microphone | Yes,1 built-in microphone | |
| Built-in Speaker | NA | |
| Audio | NA | |
| Alarm | NA | |
| Reset Key | NA | |
| Event | ||
| Basic Event | Video tampering alarm, motion detection (support alarm triggering by specified target types (human, vehicle)), exception | |
| Smart Event | NO | |
| Linkage | Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture | |
| Deep Learning Function | ||
| Perimeter Protection | NO | |
| Face Capture | NO | |
| General | ||
| Power | 12 VDC ยฑ 25%, 0.55 A, max. 6.6 W, ร5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8.0 W | |
| Dimension | 69.1 mm ร 66.9 mm ร 172.9 mm (2.72โณ ร 2.63โณ ร 6.81โณ) | |
| Package Dimension | 216 mm ร 121 mm ร 118 mm (8.50โณ ร 4.76โณ ร 4.65โณ) | |
| Weight | Approx. 290 g (0.64 lb.) | |
| With Package Weight | -LIU(F): Approx. 450 g (0.99 lb.) | |
Hikvision 2MP IP Camera Sri Lanka
Hikvision IP Camera Sri Lanka
Hikvision PoE Camera Sri Lanka
Hikvision Smart Hybrid Light Camera
Hikvision 2MP CCTV Camera
DS-2CD1023G3-LIU Sri Lanka
Hikvision Bullet Camera Sri Lanka
Hikvision CCTV Camera Price Sri Lanka
2MP IP Camera Sri Lanka
PoE CCTV Camera Sri Lanka
Hikvision Camera Colombo
Hikvision Camera LANKAREAL
What is the resolution of the Hikvision DS-2CD1023G3-LIU?
The Hikvision DS-2CD10243G3-LIU is a 2MP IP security camera, providing high-resolution video suitable for home and business CCTV systems.
Does the DS-2CD1023G3-LIU support PoE?
Yes. It supports Power over Ethernet (PoE), allowing network data and power to be supplied through a single Ethernet cable when connected to compatible PoE equipment.
Does this Hikvision camera have a built-in microphone?
Yes. The DS-2CD1023G3-LIU features a built-in microphone for audio recording along with CCTV video.
Can the Hikvision DS-2CD1023G3-LIU be installed outdoors?
Yes. Its IP67-rated weather-resistant housing makes it suitable for outdoor installations such as entrances, gates, parking areas and building exteriors.
Where can I buy the Hikvision DS-2CD1023G3-LIU in Sri Lanka?
You can order the Hikvision DS-2CD1023G3-LIU 2MP IP Camera from LANKAREAL in Sri Lanka
