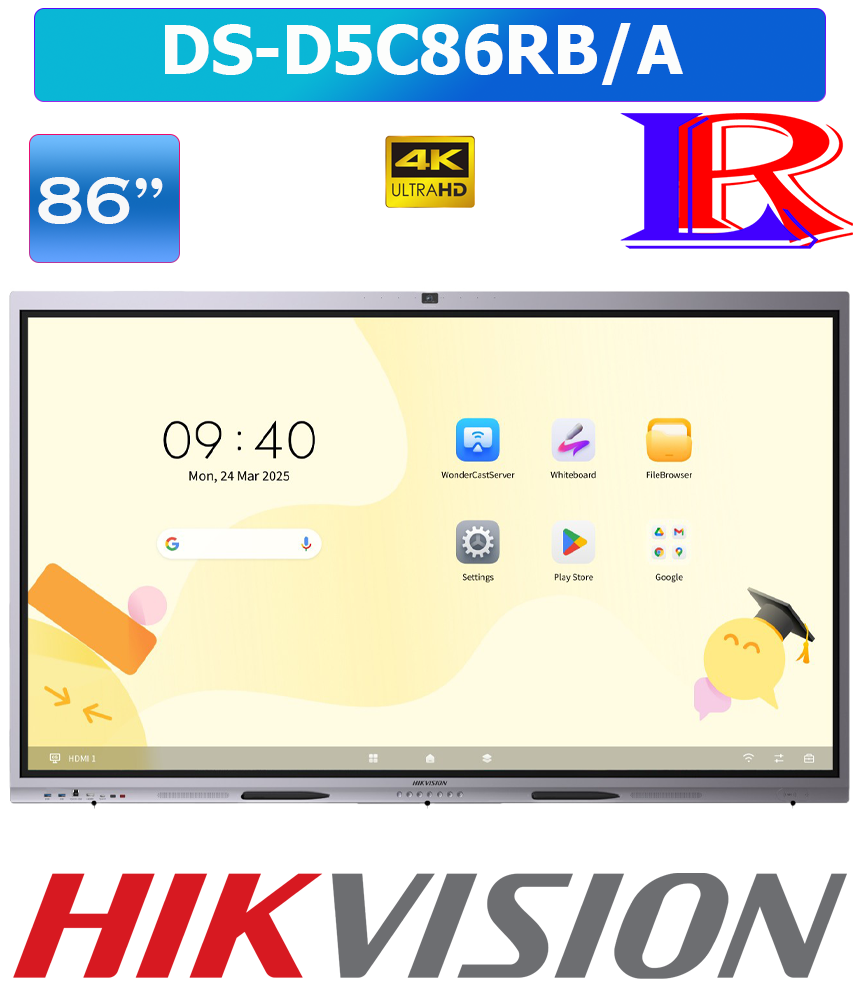

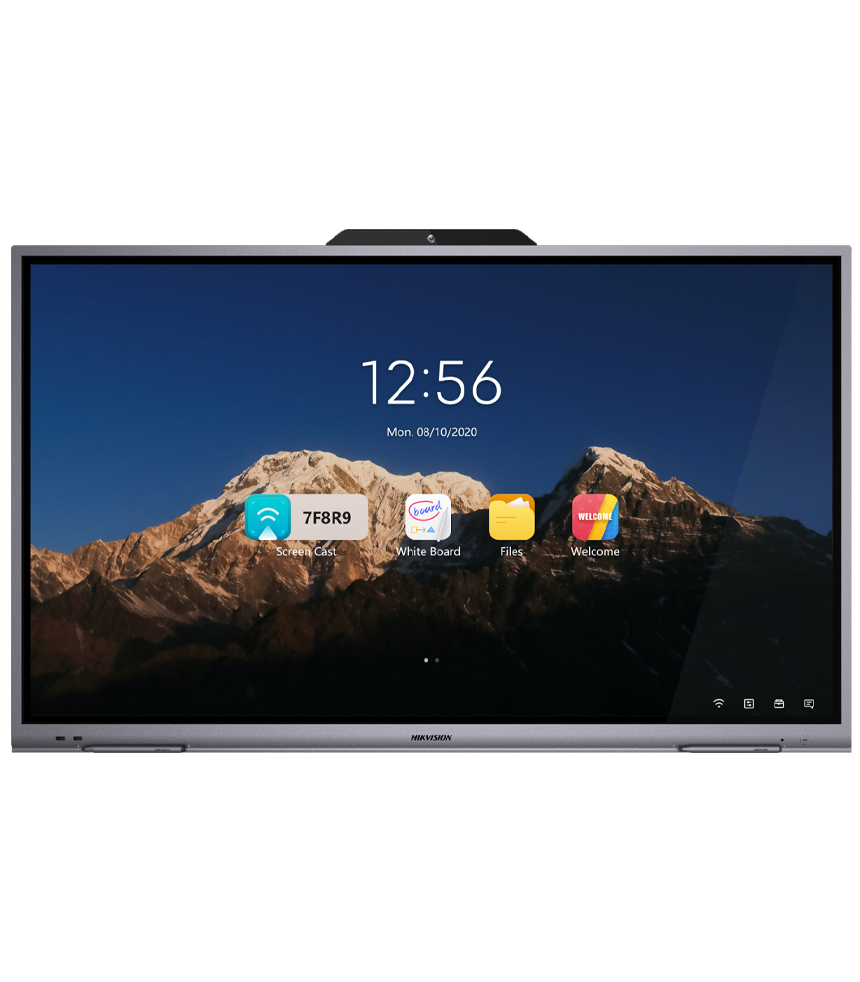

86 inch 4k smart board interactive display multi touch wifi DS-D5C86RB/A
| Specification | ||
| Product Model | ||
| Product Model | DS-D5C86RB/A | |
| Display | ||
| Screen Size | 86 inch | |
| Backlight | DLED | |
| Pixel Pitch | 0.1645（H）× 0.4935（V）mm | |
| Resolution | 3840 × 2160 @60 Hz | |
| Brightness | 400 cd/m² （Typ.） | |
| Color Depth | 10 bit | |
| Display Color | 1.07 G | |
| Response Time | 5 ms | |
| Panel Type | VA | |
| Contrast Ratio | 5000:1 (Static) 30,000:1 (Dynamic) |
|
| Color Gamut | 72% NTSC (CIE1931) (Typ.) | |
| Refresh Rate | 60 Hz | |
| Viewing Angle | 178° (H)/178° (V) | |
| Aspect Ratio | 16:9 | |
| Surface Hardness | 9H (Pencil) 7 (Mohs) |
|
| Surface Glass | Anti-Glare Glass | |
| Surface Haze | 25% Haze | |
| Glass Bonding Method | Zero Lamination | |
| Display Area | 1895.04mm ╳ 1065.96mm | |
| Working Duration | 7 × 16 H | |
| Transmittance | 88% ± 3 | |
| Lifespan | 50,000 hours | |
| Touch | ||
| Type | Infrared Touch Screen | |
| Touch Point | Up to 50-point multi-touch | |
| Touch Response Time | ≤ 2 ms | |
| Minimum Touch Object | ≥ 1.5 mm (≥ 90% touching area) | |
| Touch Precision | ± 0.5 mm (≥ 90% touching area) | |
| Touch Resolution | 32768 × 32768 | |
| Built-in System | ||
| Operation System | Android 14.0 | |
| Memory | 8 GB | |
| Built-in Storage | 128 GB | |
| Processor | Quad-core Cortex-A76 × 4（2.4 GHz）and quad-core Cortex-A55 × 4（1.8 GHz） | |
| GPU | Mali-G610 MC4 | |
| HDCP Version | 2.3 | |
| Internal Function | ||
| Loudspeaker | Built-in 2 × 20 W+25W loudspeaker; | |
| Bluetooth | Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1 | |
| NFC | Support screen mirroring by Android phones | |
| Light Sensor | Yes | |
| Interface | ||
| Video & Audio Input | HDMI In (HDMI 2.0) × 3, VGA In × 1, DP In (DP 1.2) × 1, Audio In × 1 | |
| Video & audio output | HDMI Out (HDMI 2.0) × 1, Audio Out × 1, SPDIF Out × 1 | |
| Control interface | TOUCH-USB 3.0 × 3, RS232 × 1 | |
| Network Interface | LAN (1000 Mbps) × 2 WIFI AP & Station, 2.4G/5G WIFI 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP |
|
| Data Transmission Interface | USB 3.0 × 4, USB 2.0 × 1, Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W) |
|
| Power | ||
| Power Supply | 100 to 240 VAC, 50/60 Hz | |
| Standby Consumption | ≤ 0.5 W | |
| Average Consumption | < 205W | |
| Working Environment | ||
| Working Temperature | 0 °C to 40 °C (32 °F to 104°F) | |
| Working Humidity | 10%~90% RH | |
| General | ||
| VESA | 800 mm × 600 mm （4 × M8-25 mm） | |
| Product dimensions | 1960.44 mm × 1158.24 mm× 82.5 mm | |
| Accessory | Wall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5M HDMI cable (2.0), power cable , bluetooth remote control. |
|
| Package Dimensions (W × H × D) | 2147 mm × 1335 mm × 213 mm | |
| Net Weight | 64.13 kg | |
| Gross Weight | 81.6 kg | |
