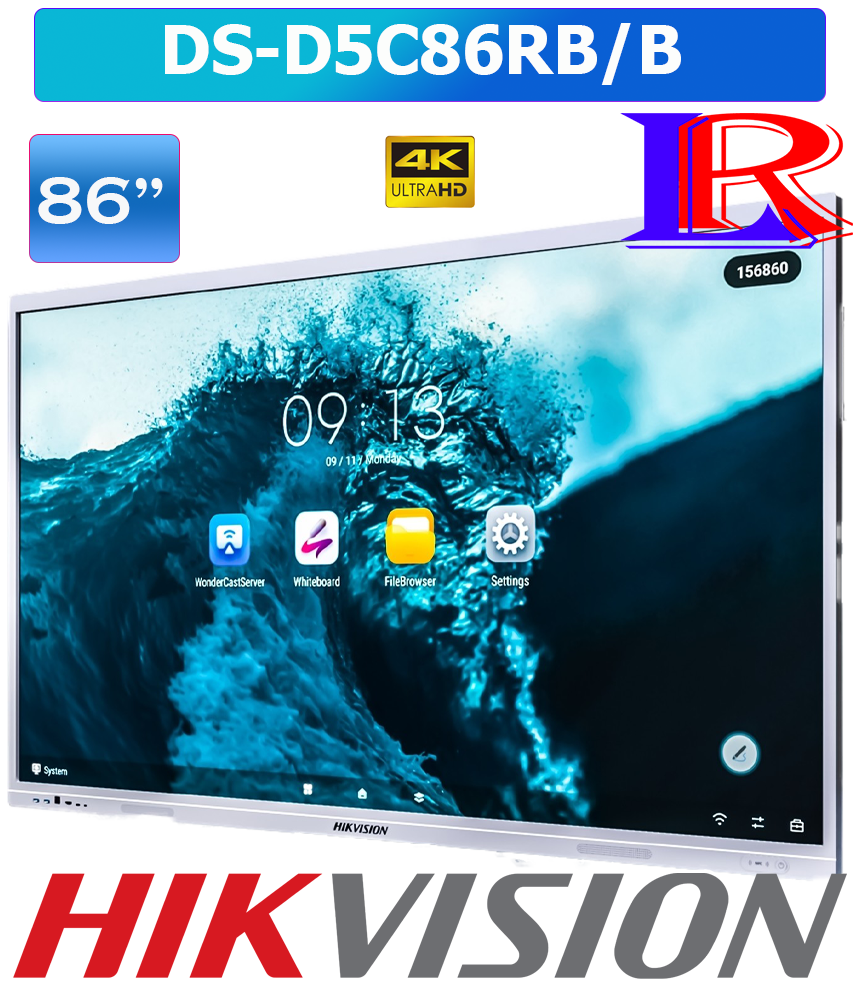

Hikvision 86-inch 4K Interactive Display smart board with camera DS-D5C86RB/B
| Specification | ||
| Product Model | ||
| Product Model | DS-D5C86RB/B | |
| Display | ||
| Screen Size | 86 inch | |
| Backlight | DLED | |
| Pixel Pitch | 0.1645（H）× 0.4935（V）mm | |
| Resolution | 3840 × 2160 @60 Hz | |
| Brightness | 400 cd/m² （Typ.） | |
| Color Depth | 10 bit | |
| Display Color | 1.07 G | |
| Response Time | 5 ms | |
| Panel Type | VA | |
| Contrast Ratio | 5000:1 (Static) 30,000:1 (Dynamic) |
|
| Color Gamut | 72% NTSC (CIE1931) (Typ.) | |
| Refresh Rate | 60 Hz | |
| Viewing Angle | 178° (H)/178° (V) | |
| Aspect Ratio | 16:9 | |
| Surface Hardness | 9H (Pencil) 7 (Mohs) |
|
| Surface Glass | Anti-Glare Glass | |
| Surface Haze | 25% Haze | |
| Glass Bonding Method | Zero Lamination | |
| Display Area | 1895.04mm ╳ 1065.96mm | |
| Working Duration | 7 × 16 H | |
| Transmittance | 88% ± 3 | |
| Lifespan | 50,000 hours | |
| Touch | ||
| Type | Infrared Touch Screen | |
| Touch Point | Up to 50-point multi-touch | |
| Touch Response Time | ≤ 2 ms | |
| Minimum Touch Object | ≥ 1.5 mm (≥ 90% touching area) | |
| Touch Precision | ± 0.5 mm (≥ 90% touching area) | |
| Touch Resolution | 32768 × 32768 | |
| Built-in System | ||
| Operation System | Android 14.0 | |
| Memory | 8 GB | |
| Built-in Storage | 128 GB | |
| Processor | Quad-core Cortex-A76 × 4（2.4 GHz）and quad-core Cortex-A55 × 4（1.8 GHz） | |
| GPU | Mali-G610 MC4 | |
| HDCP Version | 2.3 | |
| Camera | ||
| Pixel | Pixel 48MP for Photos & 8 MP for Video | |
| Camera Function | Support intelligent switching between Android system, OPS, and PC. | |
| Field Angle | 93.4° (diagonal), 84.5° (horizontal), 54.1° (vertical) | |
| Distortion | ≤2.5% | |
| Camera Resolution Ratio | Up to 4K | |
| Microphone | ||
| Specification | Omni-directional 8-array layout | |
| Mic Function | Echo reduction and smart noise-cancellation | |
| Voice Distance | 12 m | |
| Sampling Rate | 32 K | |
| Mic Depth | 16 bit | |
| Internal Function | ||
| Loudspeaker | Built-in 2 × 20 W+25W loudspeaker; | |
| Bluetooth | Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1 | |
| NFC | Support screen mirroring by Android phones | |
| Light Sensor | Yes | |
| Image Processing Technology | Support 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, automatic defogging；support shadow correction . | |
| Audio Processing Technology | Support dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, speech detection. |
|
| Interface | ||
| Video & Audio Input | HDMI In (HDMI 2.0) × 3, VGA In × 1, DP In (DP 1.2) × 1, Audio In × 1 | |
| Video & audio output | HDMI Out (HDMI 2.0) × 1, Audio Out × 1, SPDIF Out × 1 | |
| Control interface | TOUCH-USB 3.0 × 3, RS232 × 1 | |
| Network Interface | LAN (1000 Mbps) × 2 WIFI AP & Station, 2.4G/5G WIFI 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP |
|
| Data Transmission Interface | USB 3.0 × 4, USB 2.0 × 1, Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W) |
|
| Power | ||
| Power Supply | 100 to 240 VAC, 50/60 Hz | |
| Standby Consumption | ≤ 0.5 W | |
| Average Consumption | < 205W | |
| Working Environment | ||
| Working Temperature | 0 °C to 40 °C (32 °F to 104°F) | |
| Working Humidity | 10%~90% RH | |
| General | ||
| VESA | 800 mm × 600 mm （4 × M8-25 mm） | |
| Product dimensions | 1960.44 mm × 1173.74 mm × 82.5 mm | |
| Accessory | Wall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5M HDMI cable (2.0), power cable , bluetooth remote control. |
|
| Package Dimensions (W × H × D) | 2147 mm × 1335 mm × 213 mm | |
| Net Weight | 65.13 kg | |
Hikvision Interactive Display 86 inch price
86 inch Smart Board price in sri lanka
Smart Board price in sri lanka Abans
board for digital meeting room
inch interactive flat panelsmart board
what are the usage of smart board?
A Smart Board is an interactive whiteboard that acts as a touchscreen computer display, allowing users to manipulate digital content, write notes, and run applications via touch or stylus. Key uses include interactive classroom lessons, dynamic corporate presentations, video conferencing, and collaborative brainstorming.
Core Usages of Smart Boards:
- Interactive Education: Teachers can display, annotate, and manipulate multimedia lessons, such as virtual labs, 3D models, maps, or educational games.
- Dynamic Presentations & Meetings: In business settings, they allow presenters to zoom in on visuals, annotate reports in real-time, and navigate websites, moving beyond static slideshows.
- Touch Screen Interface: Users can navigate applications, highlight text, and move objects on the screen using fingers or a pen, similar to using a giant tablet.
- Digital Annotation & Whiteboarding: Users can write or draw over any content (videos, documents, websites) and save these notes directly into digital files, reducing the need for paper.
- Collaboration & Video Conferencing: Modern boards often integrate with tools like Microsoft Teams, Zoom, or Google Meet, enabling remote participants to join in, while local users can share notes instantly.
- Simulations & Training: In healthcare and technical fields, they are used to display complex anatomical diagrams or engineering schematics, allowing for hands-on, interactive training.
Key Features:
- Smart Notebook Software: Enables the creation of customized, interactive lesson plans.
- Multi-touch capability: Allows multiple users to write or move objects at the same time.
- Cloud Integration: Saves, opens, and shares work directly to platforms like Google Drive or OneDrive.
