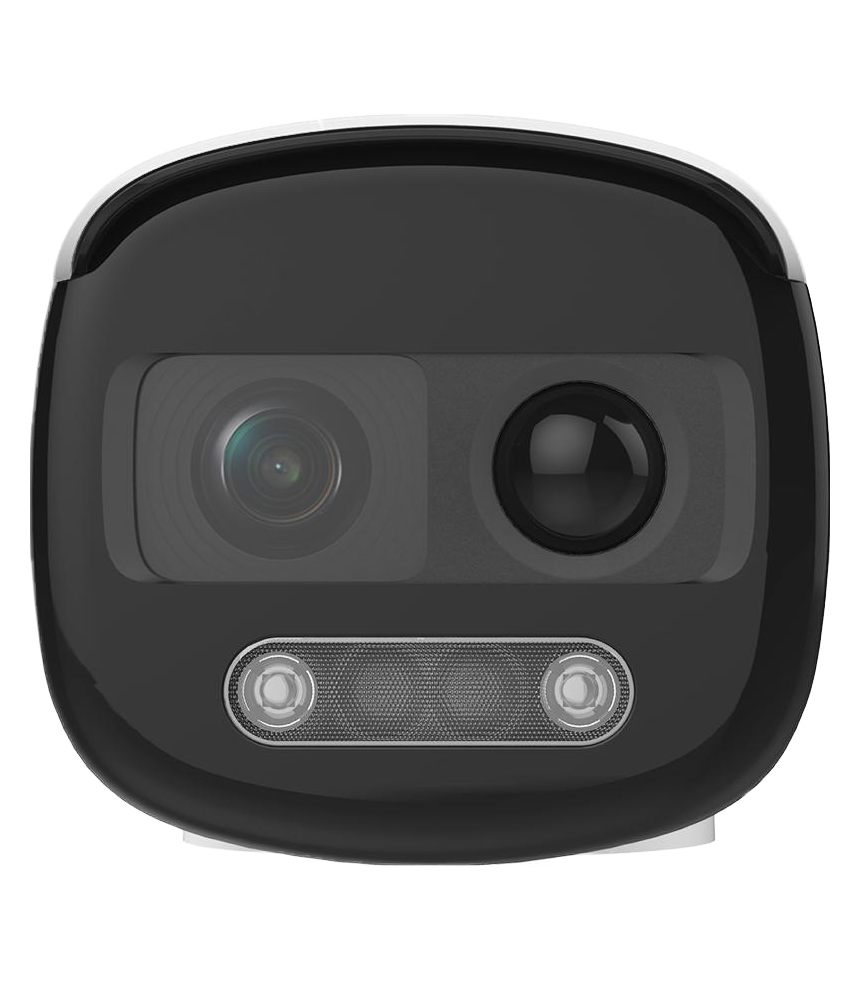

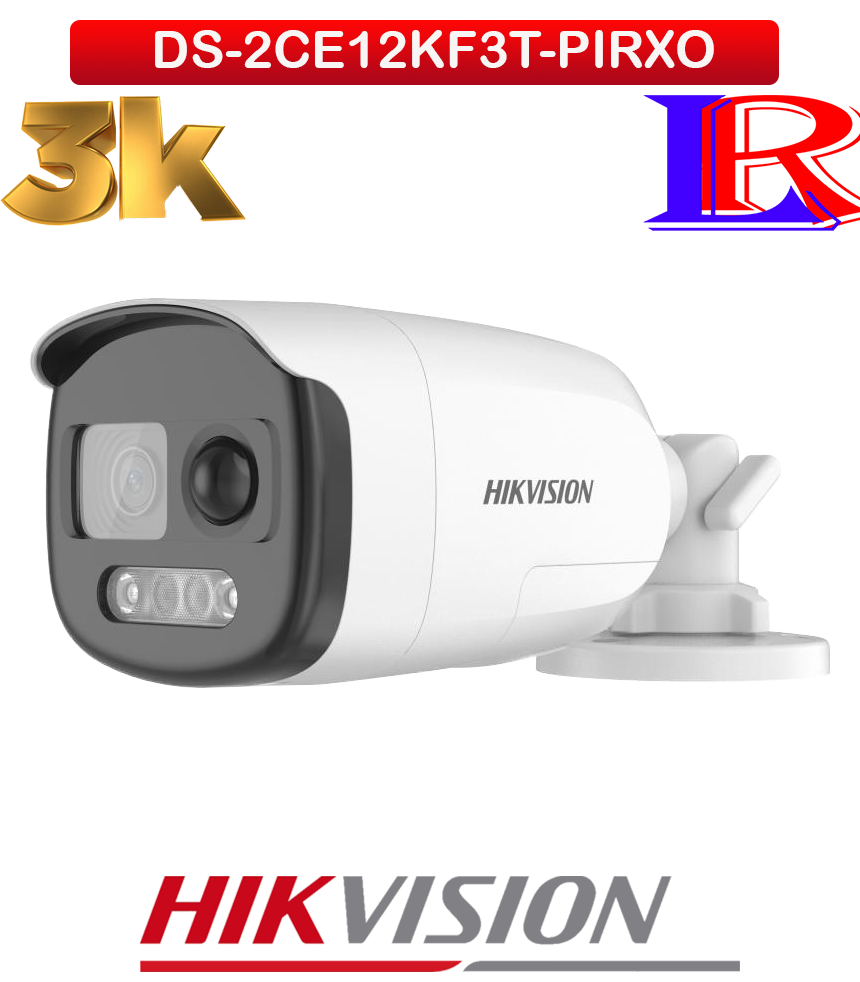

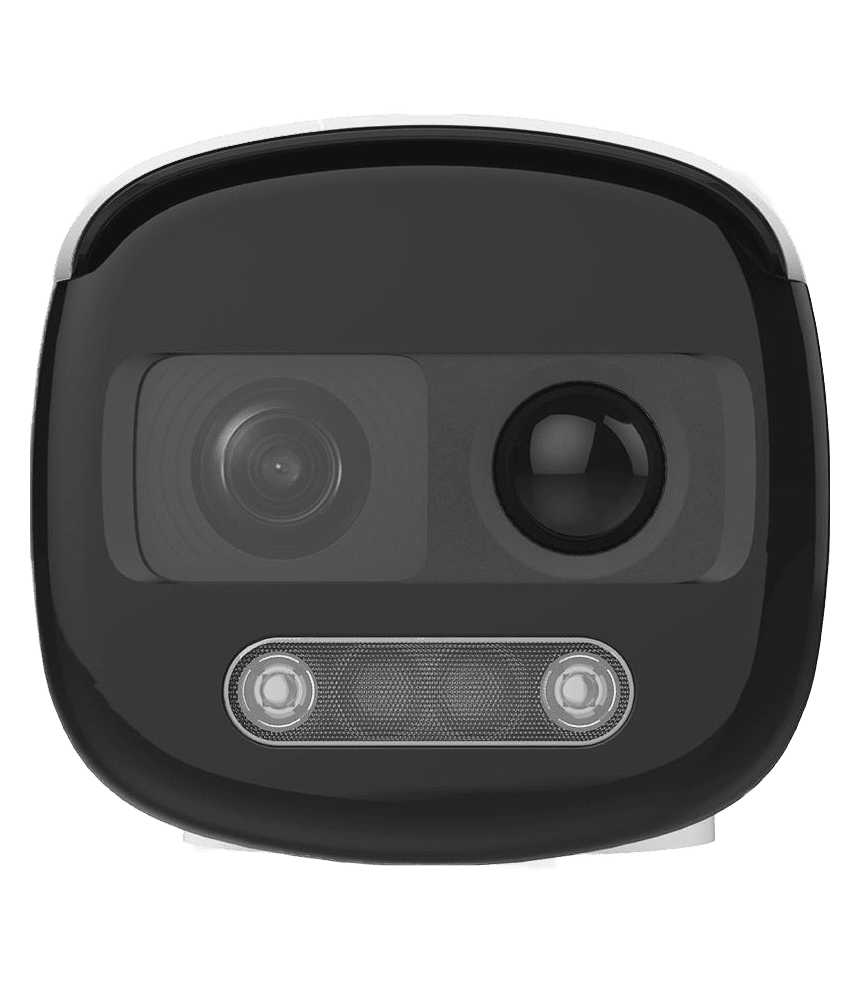

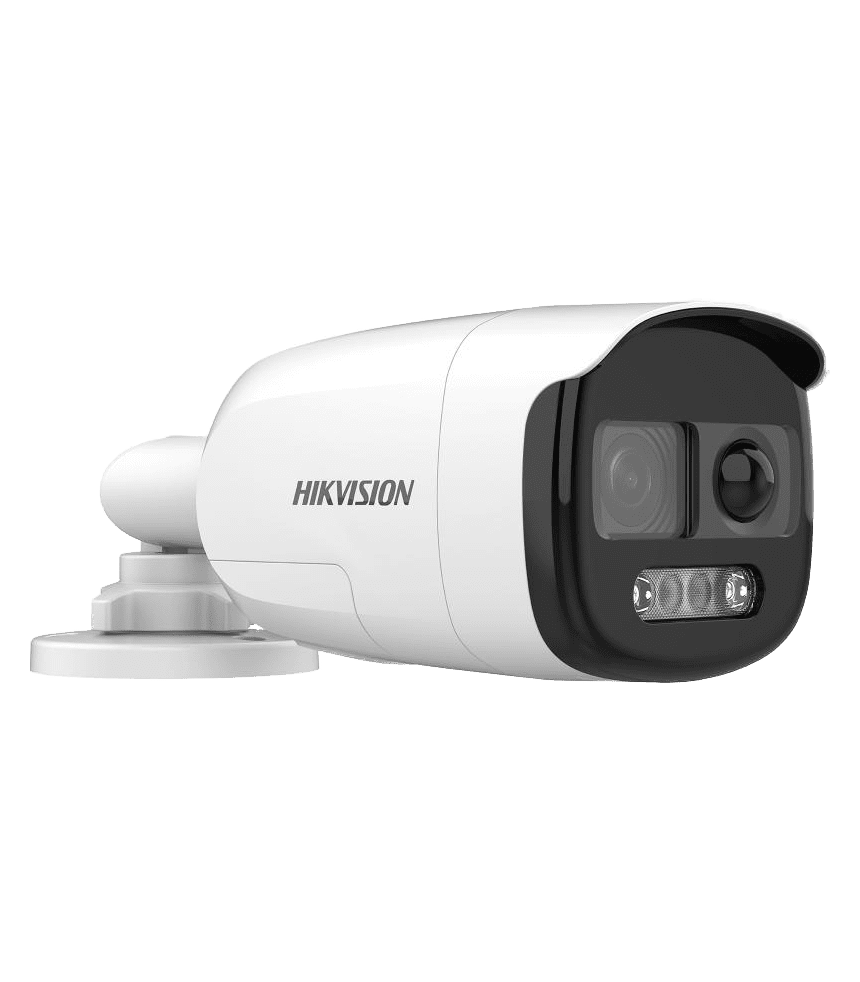

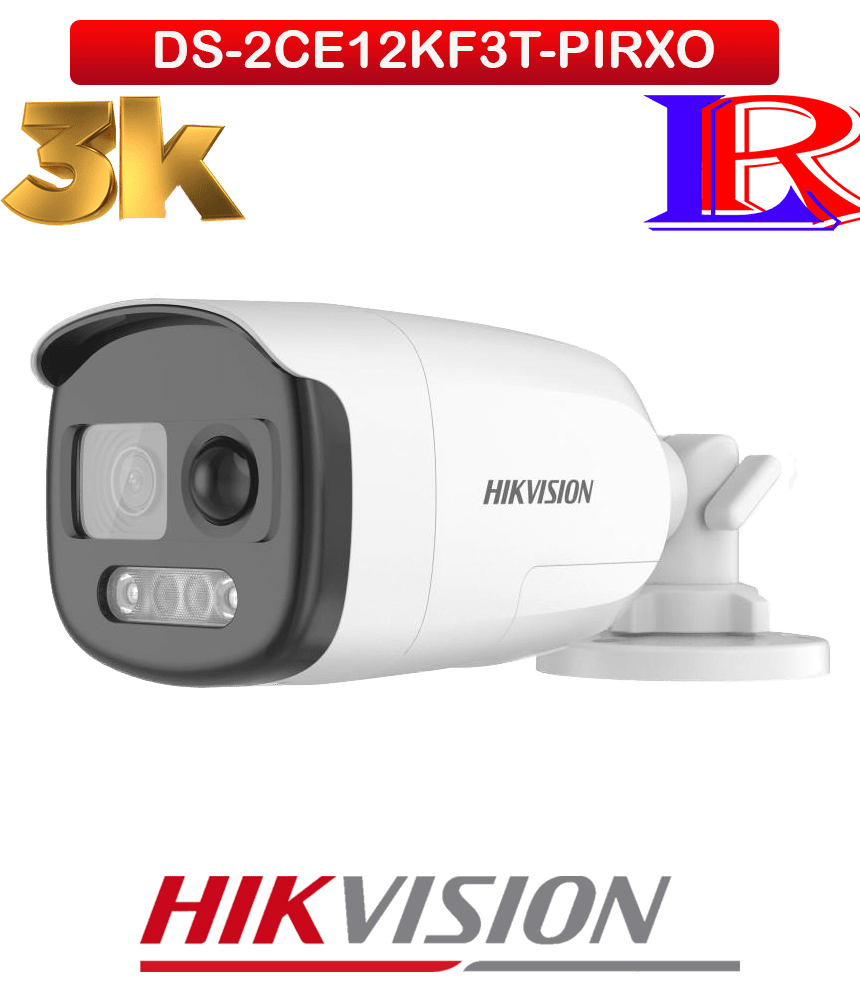

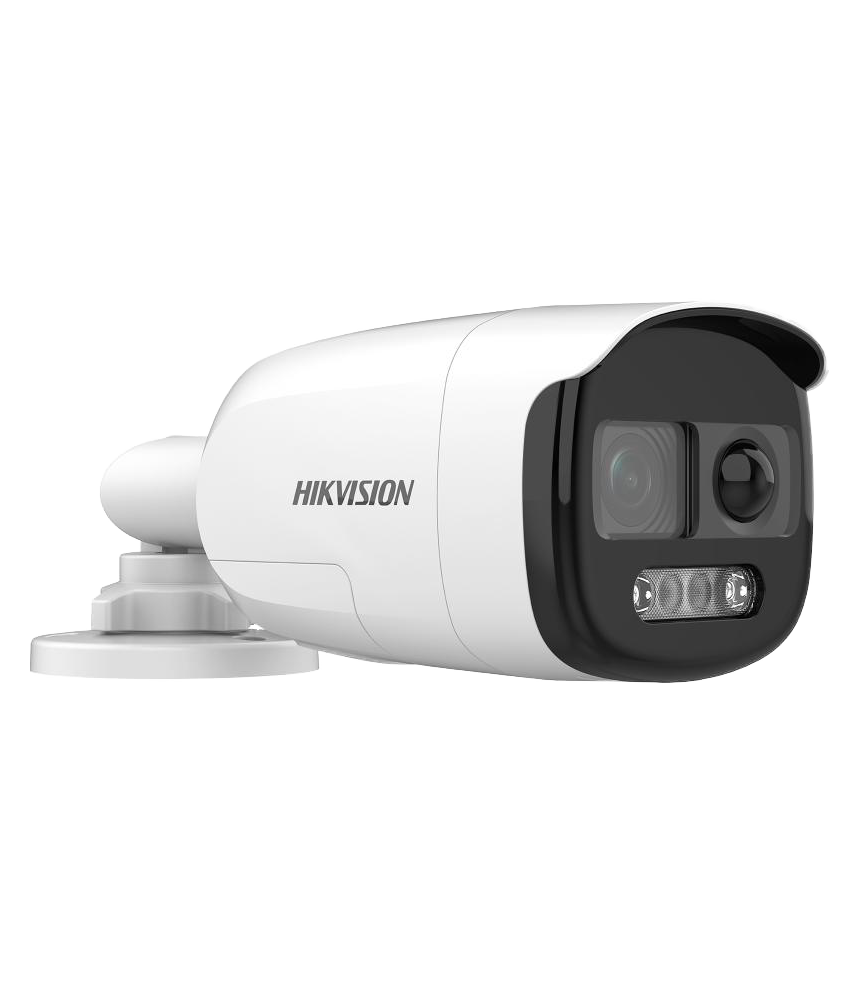

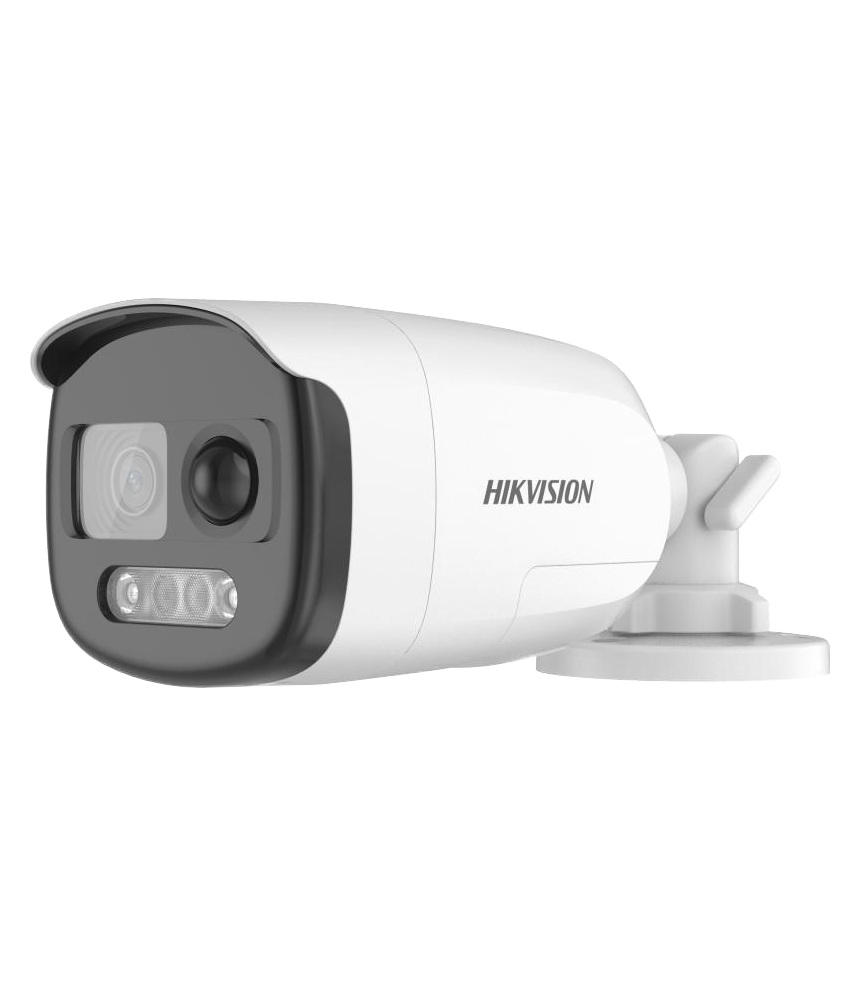

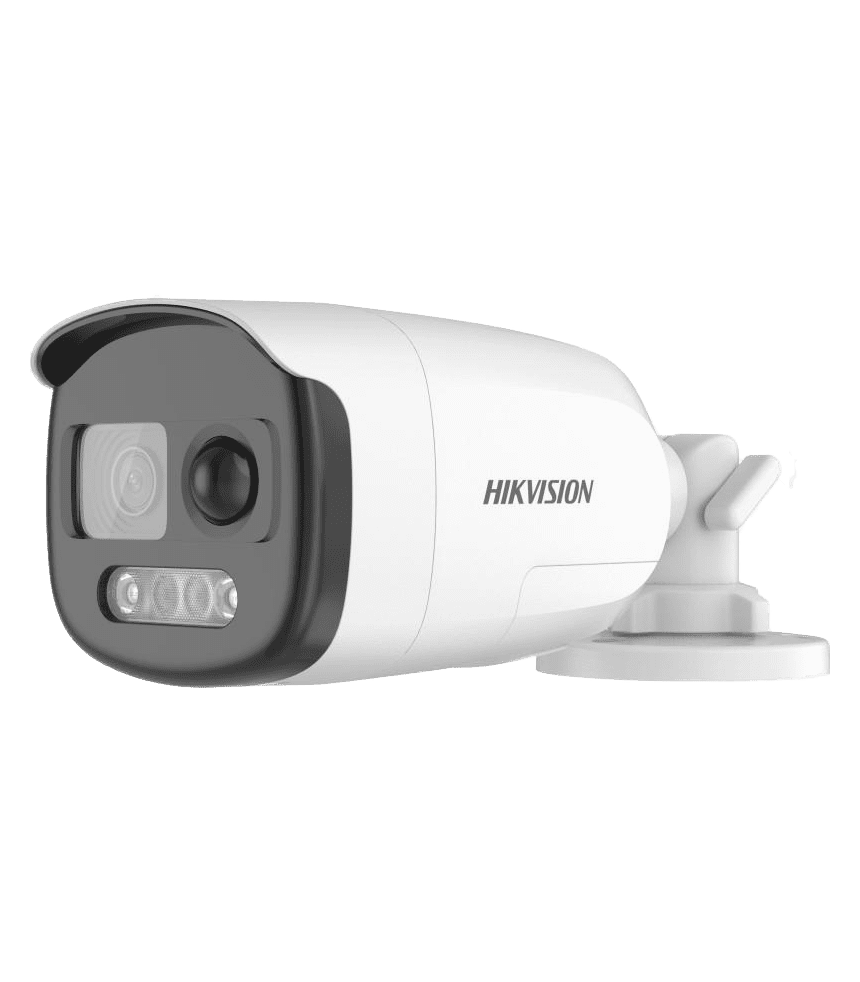

Hikvision 3K ColorVu PIR Siren Bullet Camera DS-2CE12KF3T-PIRXO
| Specification | ||
| Camera | ||
| Image Sensor | 1/1.8″ 3K CMOS | |
| Max. Resolution | 2960 (H) × 1665 (V) | |
| Min. Illumination | 0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white Light | |
| Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s | |
| Day ＆ Night | 24/7 Color Imaging | |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360° | |
| Signal System | PAL/NTSC | |
| Slow Shutter | Max. 16 times | |
| Lens | ||
| Lens Type | 2.8 mm, 3.6 mm fixed focal lens | |
| Focal Length ＆ FOV | 2.8 mm, horizontal FOV: 109°, vertical FOV: 58°, diagonal FOV: 129° 3.6 mm, horizontal FOV: 92°, vertical FOV: 45°, diagonal FOV: 111° |
|
| Lens Mount | M16 | |
| Illuminator | ||
| Supplement Light Type | White Light | |
| Supplement Light Range | Up to 40 m | |
| Smart Supplement Light | Yes | |
| Image | ||
| Image Parameters Switch | STD/HIGH-SAT/HIGHLIGHT | |
| Image Settings | Brightness,Contrast,Mirror,Defective Pixel Correction,Sharpness,Smart Light,Anti-Banding,AGC |
|
| Frame Rate | 3K@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps | |
| Day/Night Mode | Color | |
| Wide Dynamic Range (WDR) | ≥130 dB | |
| Image Enhancement | WDR, BLC, HLC, Global, HLS | |
| Privacy Mask | 4 programmable privacy masks | |
| Noise Reduction | 3D DNR/2D DNR | |
| White Balance | Auto/Manual | |
| White Light | Auto/Off | |
| Supplement Detection(PIR) | ||
| PIR Range | 11 m | |
| PIR Angle | 110° | |
| Interface | ||
| Video Output | 1 HD analog output | |
| Alarm | 1 line out Flashing Light Alarm (White) |
|
| Event | ||
| Motion Detection | 4 programmable motion areas | |
| General | ||
| Power | 12 VDC ± 25%, max. 7.9 W *You are recommended to use one power adapter to supply the power for one camera. |
|
| Material | Front cover: Metal, Main body: Plastic | |
| Dimension | 82.6 mm × 77.1 mm × 213.2 mm (3.25″ × 3.04″ × 8.39″) | |
| Weight | Approx. 467 g (1.03 lb.) | |
| Operating Condition | -40°C to 60°C (-40°F to 140°F), humidity: 90% or less (non-condensing) | |
| Communication | HIKVISION-C | |
| Language | English | |
| Approval | ||
| Protection | IP67 | |
