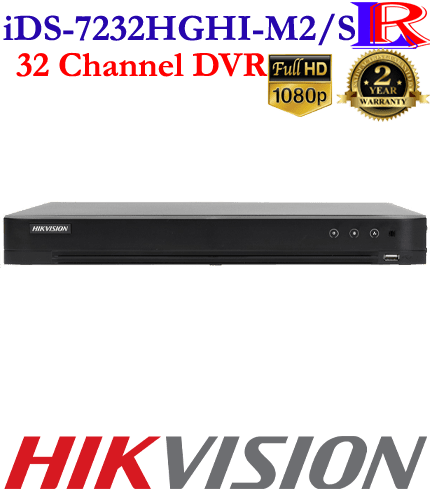

Hikvision 32 Channel DVR iDS-7232HGHI-M2/S
| Motion Detection 2.0¹ | ||
Human/Vehicle Analysis |
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; |
|
| Perimeter Protection¹ | ||
| Human/Vehicle Analysis | Up to 4-ch | |
| Recording | ||
| Video compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | |
| Encoding resolution | Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
|
| Sub-stream: WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N) |
||
| Video bitrate | 32 Kbps to 6 Mbps | |
| Dual stream | Support | |
| Stream type | Video, Video & Audio | |
| Audio compression | G.711u | |
| Audio bitrate | 64 Kbps | |
| Video and Audio | ||
| IP video input2 | 4-ch (up to 36-ch) Enhanced IP mode on: 8-ch (up to 24-ch), each up to 4 Mbps |
|
| Up to 6 MP resolution | ||
| Support H.265+/H.265/H.264+/H.264 IP cameras | ||
| Analog video input | 32-channel | |
| BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection | ||
| HDTVI input | 3K@20 fps, 4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps *: The 3 MP signal input is only available for channel 1/2 of iDS-7208HQHI-M2/S, and for channel 1/2/3/4 of iDS-7216HQHI-M2/S. |
|
| AHD input | 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps |
|
| HDCVI input | 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps |
|
| CVBS input | PAL/NTSC | |
| CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
|
| HDMI output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz | |
| VGA output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz | |
| Video output mode | HDMI/VGA simultaneous output | |
| Audio input3 | 1-ch (up to 8-ch is optional), RCA (2.0 Vp-p, 1 KΩ) |
1-ch (up to 16-ch is optional), RCA (2.0 Vp- p, 1 KΩ) |
| 8-ch via coaxial cable | 16-ch via coaxial cable | |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) | |
| Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) | |
| Synchronous playback | 32-ch | |
| Network | ||
| Remote connection | 128 | |
| Network protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
|
| Network interface | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
1,RJ45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Wi-Fi | Connectable to Wi-Fi network by Wi-Fi dongle through USB interface | |
| Auxiliary interface | ||
| SATA | 2 SATA interfaces, up to 10 TB capacity for each disk | |
| Serial interface | RS-485 (half-duplex) | |
| USB interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 |
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Alarm in/out3 | N/A (optional to support ) | |
| General | ||
| Power supply | 12 VDC, 2.5 A | 12 VDC, 3.3 A |
| Consumption (without HDD) | ≤ 30 W | ≤ 40 W |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) | |
| Working humidity | 10% to 90% | |
| Dimension (W × D × H) | 380 × 320 × 48 mm (15.0” × 12.6” × 1.9”) | |
| Weight (without HDD) | ≤ 1.78 kg (3.9 lb.) | ≤ 2 kg (4.4 lb.) |
