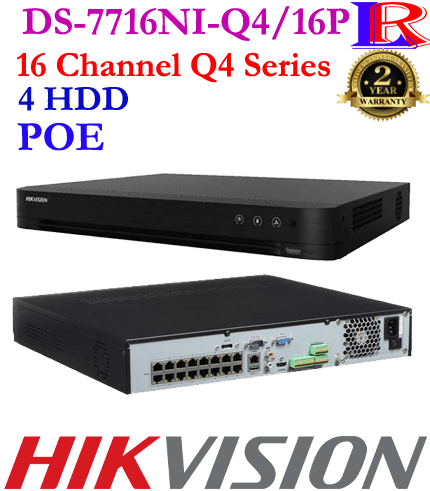

Hikvision 16 POE port 4 Hard drive NVR DS-7716NI-Q4/16P
| Video and Audio | |
| IP Video Input | 16-ch Up to 8 MP resolution |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| HDMI Output | 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz |
| VGA Output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
| Decoding | |
| Decoding Format | H.265/H.265+/H.264/H.264+ |
| Decoding Capability | 1-ch@8 MP (30 fps)/6-ch@1080p (30 fps) *: The length or width of camera resolution (each track) cannot exceed 4096 pixels. |
| Synchronous playback | 16-ch |
| Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw/G.711alaw/G.726 |
| Network | |
| Remote Connection | 64 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| PoE | |
| Interface | 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 150 W |
| Supported standard | IEEE 802.3 af/at |
| Auxiliary Interface | |
| SATA | 4, SATA interface |
| Capacity | Up to 8 TB capacity for each disk |
| Serial Interface | 1 RS-485 (half-duplex), 1 RS-232 |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 2.0 |
| Alarm In/Out | 16/4 |
| General | |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 15 W (without HDD and PoE off) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10 % to 90 % |
| Dimension (W × D × H) | 445 × 400 × 75 mm (17.5″ × 15.7″ × 3.0″) |
| Weight | ≤ 5 kg (without HDD, 11 lb.) |
channel nvr price in bangladesh
16 channel nvr price
price in bangladesh hikvision
ds7716niq416p ds7716nik4 ds7616niq2 ds7616niq1
features ds7716niq416p ds7716nik4 ds7616niq2
datasheet specification price in bd
What is the price of ds 7616NI Q2 16P? 140,000/=
What is the difference between Hikvision NVR 76 and 77? the number of SATA interfaces
What model is DS 7604NI K1 4P? New Generation 8MP NVR
What is the maximum capacity of DS 7616NI K2? The Hikvision DS–7616NI–K2 is a Network Video Recorder (NVR) for connecting up to 16 IP cameras and up to 4K resolution recording.
