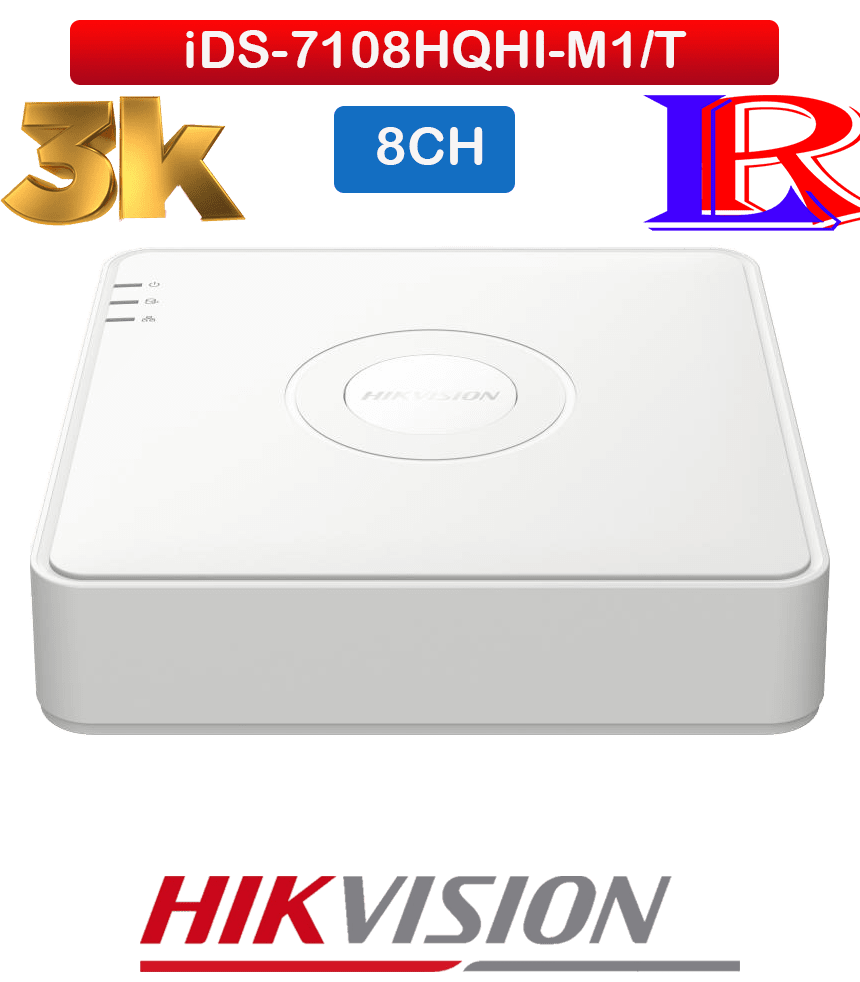

8 channel CCTV DVR Hikvision face picture search iDS-7108HQHI-M1/T
| Motion Detection 2.0 | ||
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; | |
| Perimeter Protection | ||
| Human/Vehicle Analysis | Up to 4-ch | |
| Recording | ||
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | |
| When 1080p Lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF | |
| Frame Rate | Main stream: When 1080p Lite mode is not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode is enabled: 4 MP lite@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) | |
| Video Bitrate | 32 Kbps to 6 Mbps | |
| Dual-stream | Support | |
| Stream Type | Video, Video ＆ Audio | |
| Audio Compression | G.711u | |
| Audio Bitrate | 64 Kbps | |
| Video and Audio | ||
| IP Video Input | 2-ch (up to 10-ch) Enhanced IP mode on: 4-ch (up to 12-ch), each up to 4 Mbps Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras | |
| Analog Video Input | 8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection | |
| HDTVI Input | 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 *: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1. | |
| AHD Input | 4 MP, 1080p25, 1080p30, 720p25, 720p30 | |
| HDCVI Input | 4 MP, 1080p25, 1080p30, 720p25, 720p30 | |
| CVBS Input | Support | |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
| HDMI Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
| Audio Input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) 8-ch via coaxial cable | |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) | |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) | |
| Synchronous Playback | 8-ch | |
| Video Output Mode | HDMI/VGA simultaneous output | |
| Network | ||
| Total Bandwidth | 96 Mbps | |
| Remote Connection | 64 | |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF | |
| Network Interface | 1, RJ45 10M/100M self-adaptive Ethernet interface | |
| Wi-Fi | Connectable to Wi-Fi network by Wi-Fi dongle through USB interface | |
| Auxiliary Interface | ||
| SATA | 1 SATA interface | |
| Capacity | Up to 10 TB capacity for each disk | |
| Alarm In/Out | N/A | |
| USB Interface | Real panel: 2 × USB 2.0 | |
| General | ||
| Power Supply | 12 VDC, 1.33 A | |
| Consumption | ≤ 12 W | |
| Working Temperature | -10 °C to +55 °C (+14 °F to +131 °F) | |
| Working Humidity | 10% to 90% | |
| Dimension (W × D × H) | 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch) | |
| Weight | ≤ 1 kg (2.2 lb) | |
Hikvision 8ch AcuSense DVR
hikvision cctv 8ch 1080p mini, ids7108hqhim1s hikvision cctv 8ch 1080p, 1080p mini 1u h265 acusense
