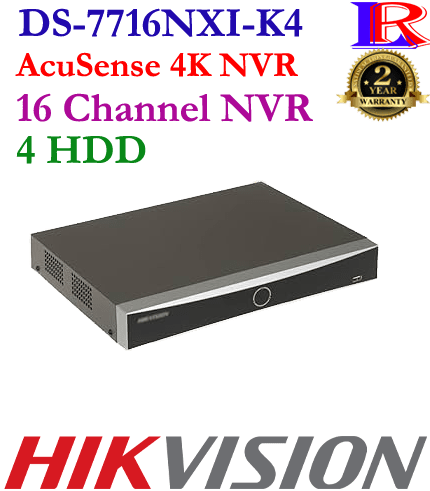

Hikvision Pro series 4 Hard Drive 16ch NVR DS-7716NXI-K4
| n Specification | ||
| Intelligent Analytics | ||
| AI by Device | Facial recognition, perimeter protection, motion detection 2.0 | |
| AI by Camera | Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA |
|
| Facial Recognition | ||
| Facial Detection and Analytics | Face picture comparison, human face capture, face picture search | |
| Face Picture Library | Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB) |
|
| Facial Detection and Analytics Performance |
1-ch, 8 MP | |
| Face Picture Comparison | 4-ch | |
| Motion Detection 2.0 | ||
| By Device | All channels, up to 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm |
|
| By Camera | All channels | |
| Perimeter Protection | ||
| By Device | 2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm |
|
| By Camera | All channels | |
| Video and Audio | ||
| IP Video Input | 16-ch | |
| Incoming Bandwidth | 160 Mbps | |
| Outgoing Bandwidth | 160 Mbps | |
| HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz | |
| Video Output Mode | HDMI/VGA independent output | |
| CVBS Output | N/A | |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) | |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input ) | |
| Decoding | ||
| Decoding Format | H.265/H.265+/H.264+/H.264 | |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
| Synchronous playback | 16-ch | |
| Decoding Capability | AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps) AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps) |
|
| Stream Type | Video, Video & Audio | |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC | |
| Network | ||
| Remote Connection | 128 | |
| API | ONVIF (profile S/G); SDK; ISAPI | |
| Compatible Browser | IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version | |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
|
| Network Interface | 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces | |
| Auxiliary Interface | ||
| SATA | 4 SATA interfaces | |
| Capacity | Up to 10 TB capacity for each HDD | |
| Serial Interface | 2 RS-485 (half-duplex), 1 RS-232 | |
| Alarm In/Out | 16/4 (16/9 is optional) | |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 | |
| Ctrl 12V | N/A (optional to support) | |
| DC 12V | N/A (optional to support) | |
| General | ||
| GUI Language | English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian |
|
| Power Supply | 100 to 240 VAC, 50 to 60Hz | |
| Consumption | ≤ 20 W (without HDD) | |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) | |
| Working Humidity | 10 to 90 % | |
| Dimension (W × D × H) | 445 × 400 × 75 mm ( 17.5″× 15.7″ × 3.0″) | |
| Weight | ≤ 5 kg (without HDD, 11 lb.) | |
