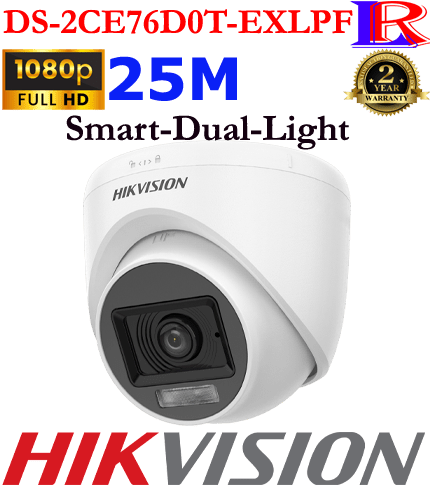

Smart dual light colorvu camera DS-2CE76D0T-EXLPF
| Specification | |
| Camera | |
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Day ＆ Night | ICR |
| Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 75°, Rotate: 0 to 360° |
| Signal System | PAL/NTSC |
| Lens | |
| Lens Type | Fixed focal lens, 2.8 and 3.6 mm optional |
| Focal Length ＆ FOV | 2.8 mm, horizontal FOV: 97°, vertical FOV: 54°, diagonal FOV: 113° 3.6 mm, horizontal FOV: 77°, vertical FOV: 43°, diagonal FOV: 90° |
| Lens Mount | M12 |
| Illuminator | |
| Supplement Light Type | White Light,IR |
| Supplement Light Range | IR : Up to 20 m White Light : Up to 20 m |
| Image | |
| Image Parameters Switch | STD/HIGH-SAT/HIGHLIGHT |
| Image Settings | Brightness, Sharpness, Smart IR |
| Frame Rate | TVI: 1080p @ 30 fps, 1080p @ 25 fps AHD: 1080p @ 30 fps, 1080p @ 25 fps CVI: 1080p @ 30 fps, 1080p @ 25 fps CVBS: PAL/NTSC |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | DWDR/BLC/HLC/Global |
| White Balance | Auto/Manual |
| AGC | Yes |
| Interface | |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| General | |
| Material | Plastic |
| Dimension | Ø85 mm × 84.6 mm (3.35″ × 3.33″) |
| Weight | Max. 150 g (0.33 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation) |
| Communication | HIKVISION-C |
| Language | English |
| Power Supply | 12 VDC ± 25%, Max. 3.5 W *You are recommended to use one power adapter to supply the power for one camera. |
