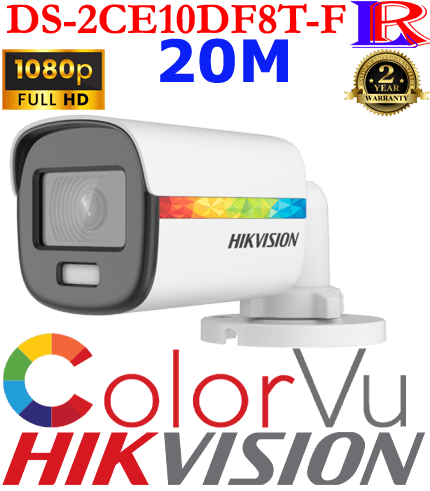

Hikvision rainbow camera DS-2CE10DF8T-F
2 mp full time color | Camera | ||||||
| Image Sensor | 2 MP CMOS | ||||||
| Signal System | PAL/NTSC | ||||||
| Resolution | 1920 (H) × 1080 (V) | ||||||
| Frame Rate | TVI: 1080p@25fps/30fps CVI: 1080p@25fps/30fps CVBS: PAL/NTSC | ||||||
| Min. Illumination | 0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white light ON | ||||||
| Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s | ||||||
| Slow Shutter | Max. 16 times | ||||||
| Lens | 2.8 mm, 3.6 mm, 6 mm Fixed Lens | ||||||
| Field of View | 2.8 mm, horizontal FOV: 106°, vertical FOV: 56°, diagonal FOV: 129° 3.6 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 100° | ||||||
| Lens Mount | M12 | ||||||
| Light Alarm | Solid Light Alarm (White Light) | ||||||
| Day & Night | Color | ||||||
| WDR (Wide Dynamic Range) | ≥130 dB | ||||||
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° | ||||||
| Menu | |||||||
| White Light | Auto/Off | ||||||
| Image Mode | STD/HIGH-SAT/HIGHLIGHT | ||||||
| AGC | Yes | ||||||
| Day/Night Mode | Color | ||||||
| White Balance | Auto | ||||||
| AE (Auto Exposure) Mode | WDR, BLC, HLC, Global, HLS | ||||||
| Privacy Mask | 4 programmable privacy masks | ||||||
| Motion Detection | 4 programmable motion areas | ||||||
| Noise Reduction | 3D DNR/2D DNR | ||||||
| Language | English | ||||||
| Function | Brightness, Contrast, Mirror, Sharpness, Anti-Banding, Smart Light | ||||||
| Interface | |||||||
| Video Output | Switchable TVI/AHD/CVI/CVBS | ||||||
| General | |||||||
| Operating Conditions | -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing) | ||||||
| Power Supply | 12 VDC ± 25%, | ||||||
| Consumption | Max. 3.1 W | ||||||
| Protection Level | IP68 | ||||||
| Material | Metal | ||||||
| White Light Range | Up to 20 m | ||||||
| Communication | HIKVISION-C | ||||||
| Dimension | 161.1 mm × 70 mm × 70 mm (6.34″ × 2.76″ × 2.76″) | ||||||
| Weight | Approx. 390 g (0.86 lb.) | ||||||
