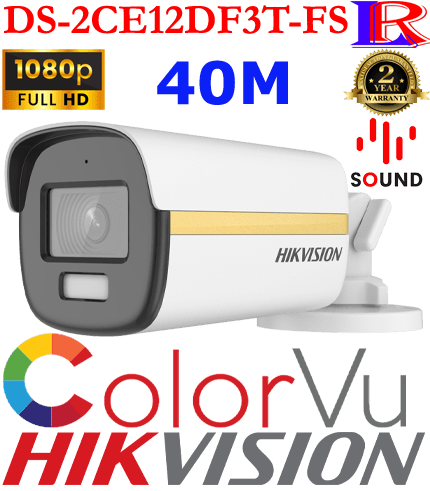

Hikvision Colorvu 40m audio camera DS-2CE12DF3T-FS
| Specification | ||
| Image Sensor | 2 MP CMOS | |
| Signal System | PAL/NTSC | |
| Resolution | 1920 (H) × 1080 (V) | |
| Frame Rate | TVI: 1080p @ 25 fps/30 fps CVI: 1080p @ 25 fps/30 fps AHD: 1080p @ 25 fps/30 fps CVBS: PAL/NTSC | |
| Min. Illumination | 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light | |
| Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s | |
| Slow Shutter | Max. 16 times | |
| Lens | 2.8 mm, 3.6 mm, 6 mm fixed focal lens | |
| Field of View | 2.8 mm, horizontal FOV: 98°, vertical FOV: 52°, diagonal FOV: 116° 3.6 mm, horizontal FOV: 77°, vertical FOV: 42°, diagonal FOV: 91° 6 mm, horizontal FOV: 51°, vertical FOV: 28°, diagonal FOV: 59° | |
| Lens Mount | M12 | |
| Light Alarm | Solid Light Alarm (White Light) | |
| Day & Night | Color | |
| WDR (Wide Dynamic Range) | ≥130 dB | |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360° | |
| Menu | ||
| White Light | Auto/Off | |
| Image Mode | STD/HIGH-SAT/HIGHLIGHT | |
| AGC | Yes | |
| Day/Night Mode | Color | |
| White Balance | Auto/Manual | |
| AE (Auto Exposure) Mode | WDR, BLC, HLC, Global, HLS | |
| Privacy Mask | 4 programmable privacy masks | |
| Motion Detection | 4 programmable motion areas | |
| Noise Reduction | 3D DNR/2D DNR | |
| Language | English | |
| Function | Brightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Anti-Banding, Smart Light | |
| Interface | ||
| Video Output | Switchable TVI/AHD/CVI/CVBS | |
| Audio In | Built-in mic | |
| General | ||
| Operating Conditions | -40°C to 50°C (-40°F to 122°F), Humidity: 90% or less (non-condensing) | |
| Power Supply | 12 VDC ± 25%, *You are recommended to use one power adapter to supply the power for one camera. | |
| Consumption | Max. 5.7 W | |
| Protection Level | IP67 | |
| Material | Metal | |
| White Light Range | Up to 40 m | |
| Communication | HIKVISION-C | |
| Dimension | 194.2 mm × 78 mm × 74.5 mm (7.65″ × 3.07″ × 2.93″) | |
| Weight | Approx. 515 g (1.13 lb.) | |
| light distance white ds2ce12df3tfs28mm | ||
