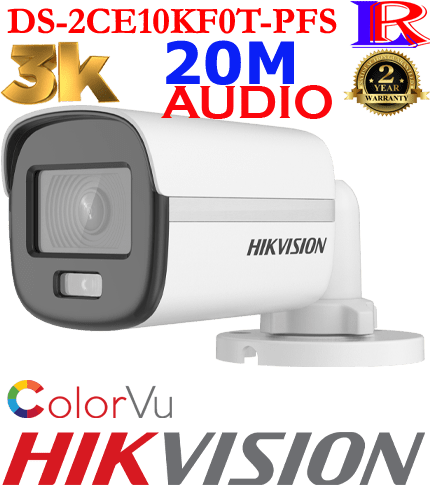

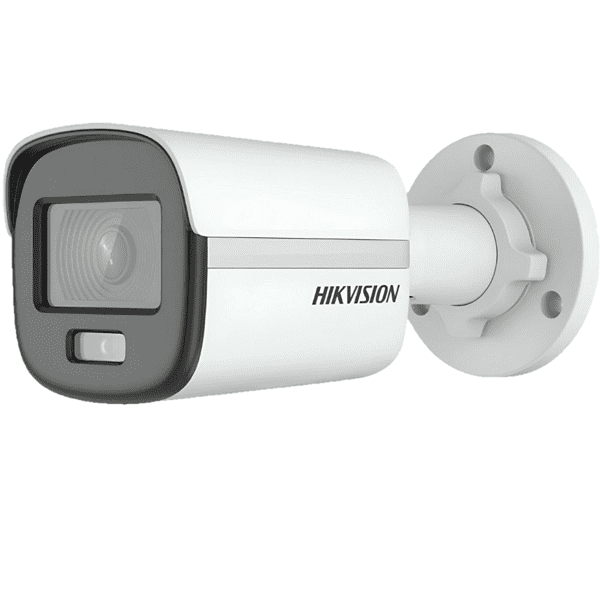

Hikvision 5MP-3K colorvu Audio camera DS-2CE10KF0T-PFS
Specification
| Camera | ||
| Image Sensor | 3K CMOS | |
| Signal System | PAL/NTSC | |
| Max. Resolution | 2960 (H) × 1665 (V) | |
| Min. Illumination | 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light | |
| Shutter Time | PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s | |
| Day & Night | 24/7 Color Imaging | |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° | |
| Lens Type | 2.8 mm and 3.6 mm fixed focal lens | |
| Focal Length & FOV | 2.8 mm, horizontal FOV: 102°, vertical FOV: 56°, diagonal FOV: 122° 3.6 mm, horizontal FOV: 80°, vertical FOV: 45°, diagonal FOV: 96° | |
| Lens Mount | M12 | |
| Supplement Light Type | White Light | |
| Supplement Light Range | Up to 20 m | |
| Frame Rate | TVI: 3K@20fps, 4 MP@25fps/30fps, 1080p@25fps/30fps AHD: 5 MP@20fps, 4 MP@25fps/30fps CVI: 4 MP@25fps/30fps CVBS: PAL/NTSC | |
| Wide Dynamic Range (WDR) | Digital WDR | |
| Image Parameters Switch | STD/HIGH-SAT/HIGHLIGHT | |
| Day/Night Mode | Color | |
| White Balance | Auto/Outdoor/Global/Manual | |
| Image Enhancement | DWDR, BLC, HLC, Global, HLS | |
| Noise Reduction | 2D DNR | |
| Image Settings | Brightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Anti-Banding, Smart Light, AGC | |
| Interface | ||
| Video Output | Switchable TVI/AHD/CVI/CVBS | |
| Alarm | Solid Light Alarm (White Light) | |
| Audio | Built-in mic | |
| General | ||
| Language | English | |
| Operating Condition | -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing) | |
| Material | Plastic | |
| Communication | HIKVISION-C | |
| Dimension | 161.1 mm × 70 mm × 70 mm (6.34″ × 2.76″ × 2.76″) | |
| Weight | Approx. 238 g (0.52 lb.) | |
| Power | 12 VDC ± 25%, Max. 2.5 W, *You are recommended to use one power adapter to supply the power for one camera. | |
| Approval | ||
| Protection | IP67 | |
