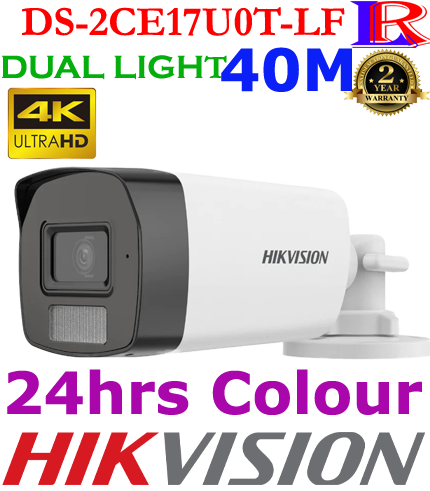

Hikvision 4K Smart Hybrid Light colour 40m Camera DS-2CE17U0T-LF
n Specification | ||
Camera | ||
Image Sensor | 4K CMOS | |
Max. Resolution | 3840 (H) × 2160 (V) | |
Min. Illumination | 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR | |
Shutter Time | PAL: 1/12.5 s to 1/50, 000 s NTSC: 1/15 s to 1/50, 000 s | |
Day & Night | ICR | |
Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360° | |
Signal System | PAL/NTSC | |
Lens | ||
Lens Type | 2.8 mm and 3.6 mm fixed focal lens | |
Focal Length & FOV | 2.8 mm, horizontal FOV: 108°, vertical FOV: 59°, diagonal FOV: 127° 3.6 mm, horizontal FOV: 88°, vertical FOV: 44°, diagonal FOV: 105° | |
Lens Mount | M12 | |
Illuminator | ||
Supplement Light Type | White Light,IR | |
Supplement Light Range | IR : Up to 40 m White Light : Up to 40 m | |
Image | ||
Image Settings | Brightness, Sharpness, Smart IR | |
Frame Rate | TVI: 8 MP @12.5 fps, 8 MP @15 fps, 4 MP @25 fps, 4 MP @30fps, 2 MP @25 fps, 2 MP @30 fps AHD: 8MP@15fps CVI: 8MP@12.5fps, 8MP@15fps CVBS: PAL/NTSC | |
Day/Night Mode | Auto/Color/BW (Black and White) | |
Wide Dynamic Range (WDR) | Digital WDR | |
Image Enhancement | DWDR/BLC/HLC/Global | |
White Balance | Auto/Manual | |
AGC | Yes | |
Interface | ||
Video Output | Switchable TVI/AHD/CVI/CVBS | |
General | ||
Power | 12 VDC ± 25%, 0.52 A, max. 6.3 W,*You are recommended to use one power adapter to supply the power for one camera. | |
Material | Front cover: Metal Main body: Plastic | |
Dimension | 216.6 mm × 78.9 mm × 75.4 mm (8.53″ × 3.11″ × 2.97″) | |
Weight | Approx. 340 g (0.75 lb.) | |
Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) | |
Communication | HIKVISION-C | |
Language | English | |
Approval | ||
Protection | IP67 |
