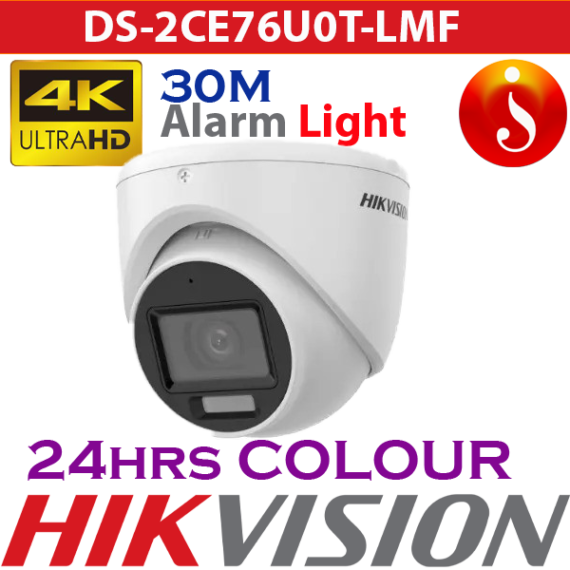

Hikvision 4K Smart Hybrid Light 30m IR Dome Camera DS-2CE76U0T-LMF

Availability: In Stock

Hikvision 4K Smart Hybrid Light 30m IR Dome Camera DS-2CE76U0T-LMF

4K Smart Hybrid Light Fixed Turret Camera

  • High quality imaging with 4K, 3840 × 2160 resolution
  • 2.8 mm and 3.6 mm fixed focal lens
  • Up to 30 m IR distance for bright night imaging
  • Up to 20 m white light distance for bright night imaging
  • One port for four switchable signals (TVI/AHD/CVI/CVBS)
  • Water and dust resistant (IP67)
  • Smart-Hybrid light, optimize your security with flexible lighting options

Hikvision 4K Smart Hybrid Light 30m IR Dome Camera DS-2CE76U0T-LMF

Specification
Camera
Image Sensor 4K CMOS
Max. Resolution 3840 (H) × 2160 (V)
Min. Illumination 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/12.5 s to 1/50, 000 s NTSC: 1/15 s to 1/50, 000 s
Day  & Night ICR
Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
Signal System PAL/NTSC
Lens
Lens Type 2.8 mm and 3.6 mm fixed focal lens
Focal Length  & FOV 2.8 mm, horizontal FOV: 108°, vertical FOV: 59°, diagonal FOV: 127°
3.6 mm, horizontal FOV: 88°, vertical FOV: 44°, diagonal FOV: 105°
Lens Mount M12
Illuminator
Supplement Light Type White Light,IR
Supplement Light Range IR : Up to 30 m
White Light : Up to 20 m
Image Settings Brightness, Sharpness, Smart IR
Frame Rate TVI: 8 MP @12.5 fps, 8 MP @15 fps, 4 MP @25 fps, 4 MP @30fps, 2 MP @25 fps, 2 MP @30 fps
AHD: 8MP@15fps
CVI: 8MP@12.5fps, 8MP@15fps CVBS: PAL/NTSC
Day/Night Mode Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement DWDR/BLC/HLC/Global
White Balance Auto/Manual
AGC Yes
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
General
Power 12 VDC ± 25%, 0.38 A, max. 4.6 W,*You are recommended to use one power adapter
to supply the power for one camera.
Material Metal
Dimension 80 mm × Ø85.1 mm (3.1″ × Ø3.4″)
Weight Approx. 310 g (0.68 lb.)
Operating Condition -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Communication HIKVISION-C
Language English
Approval
Protection IP67

4K Flash light dome camera
