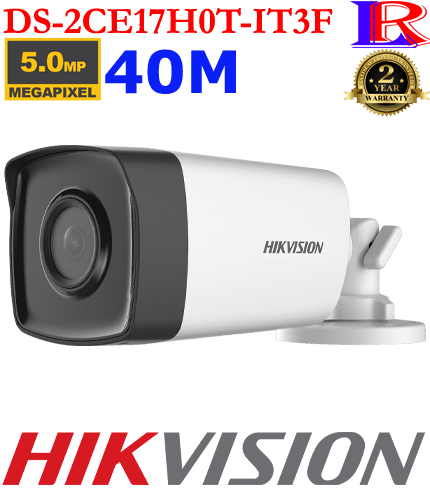

Hikvision 40 meter camera 5mp DS-2CE17H0T-IT3F
| Camera | |
| Image Sensor | 5 MP CMOS |
| Signal System | PAL/NTSC |
| Frame Rate | TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps AHD: 5M@20fps, 4M@30fps, 4M@25fps CVI: 4M@30fps, 4M@25fps CVBS: PAL/NTSC |
| Resolution | 2560 (H) × 1944 (V) |
| Min. illumination | 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
| Lens | 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens |
| Horizontal Field of View | 2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110° 3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105° 6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV:72° 8 mm, horizontal FOV: 41°, vertical FOV: 31°, diagonal FOV:52° 12 mm, horizontal FOV: 26°, vertical FOV: 19°, diagonal FOV:32° |
| Lens Mount | M12 |
| Day & Night | ICR |
| WDR (Wide Dynamic Range) | Digital WDR |
| Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360° |
| Menu | |
| Image Mode | STD/HIGH-SAT |
| AGC | Support |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| White Balance | Auto/Manual |
| AE (Auto Exposure) Mode | DWDR/BLC/HLC/Global |
| Language | English |
| Functions | Brightness, Sharpness, Mirror, Smart IR |
| 2D DNR | Yes |
| Interface | |
| Video Output | TVI/AHD/CVI/CVBS |
| General | |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Power Supply | 12 VDC ± 25% |
| Power Consumption | Max. 4.3 W |
| Protection Level | IP67 |
| Material | Front Cover: Metal Main Body: Plastic |
| IR Range | Up to 40 m |
| Communication | HIKVISION-C |
| Dimensions | 78.9 mm × 75.4 mm × 216.6 mm (3.10″ × 2.97″ × 8.53″) |
| Weight | Approx. 330 g (0.73 lb.) |
| Camera | |
| Image Sensor | 5 MP CMOS |
| Signal System | PAL/NTSC |
| Frame Rate | TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps AHD: 5M@20fps, 4M@30fps, 4M@25fps CVI: 4M@30fps, 4M@25fps CVBS: PAL/NTSC |
| Resolution | 2560 (H) × 1944 (V) |
| Min. illumination | 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
| Lens | 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens |
| Horizontal Field of View | 2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110° 3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105° 6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV:72° 8 mm, horizontal FOV: 41°, vertical FOV: 31°, diagonal FOV:52° 12 mm, horizontal FOV: 26°, vertical FOV: 19°, diagonal FOV:32° |
| Lens Mount | M12 |
| Day & Night | ICR |
| WDR (Wide Dynamic Range) | Digital WDR |
| Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360° |
| Menu | |
| Image Mode | STD/HIGH-SAT |
| AGC | Support |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| White Balance | Auto/Manual |
| AE (Auto Exposure) Mode | DWDR/BLC/HLC/Global |
| Language | English |
| Functions | Brightness, Sharpness, Mirror, Smart IR |
| 2D DNR | Yes |
| Interface | |
| Video Output | TVI/AHD/CVI/CVBS |
| General | |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Power Supply | 12 VDC ± 25% |
| Power Consumption | Max. 4.3 W |
| Protection Level | IP67 |
| Material | Front Cover: Metal Main Body: Plastic |
| IR Range | Up to 40 m |
| Communication | HIKVISION-C |
| Dimensions | 78.9 mm × 75.4 mm × 216.6 mm (3.10″ × 2.97″ × 8.53″) |
| Weight | Approx. 330 g (0.73 lb.) |
