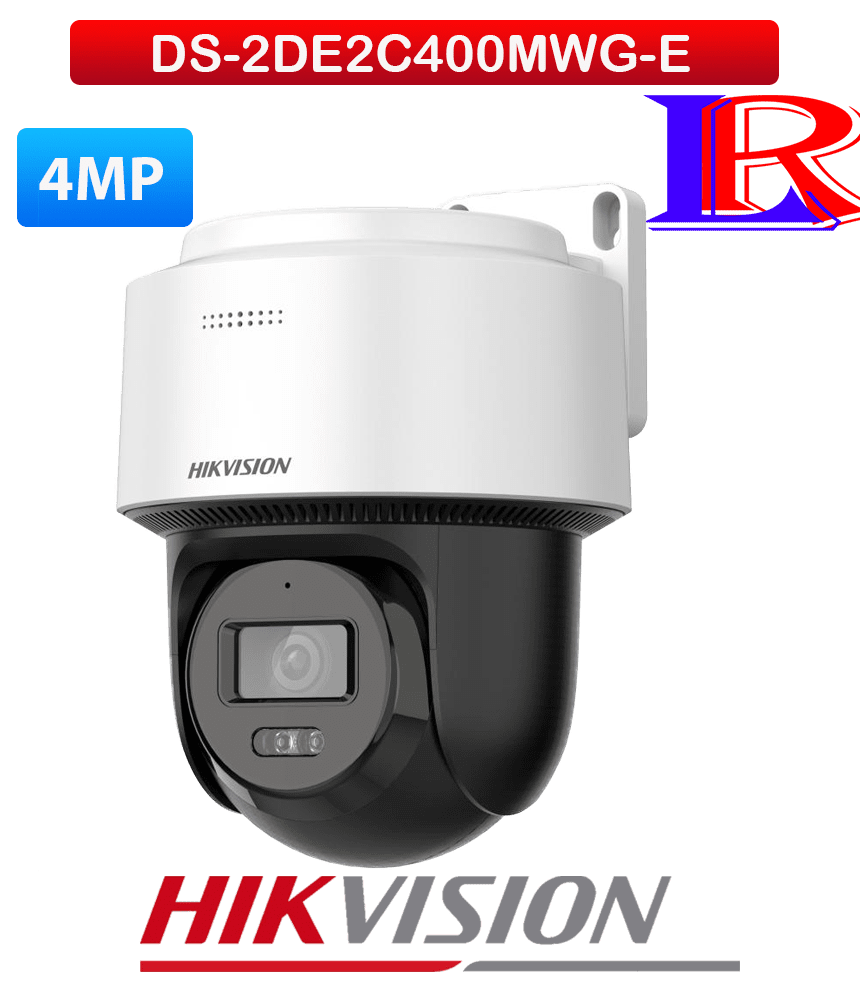

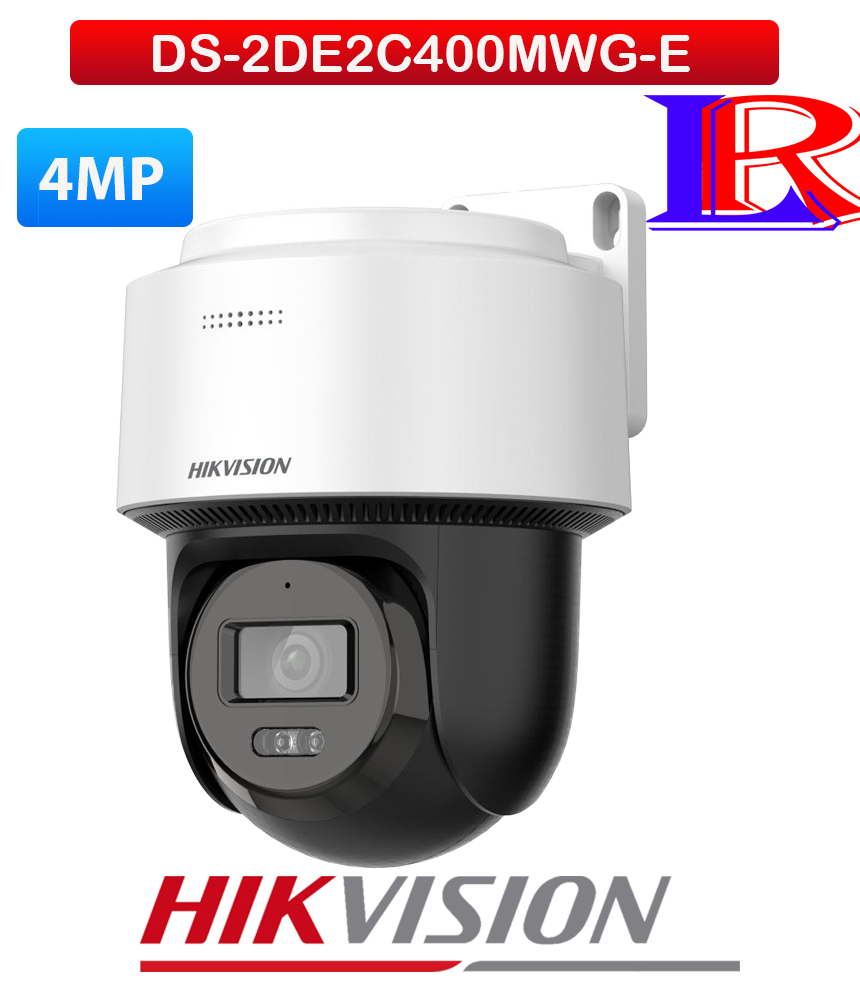

Hikvision 4 MP Smart Hybrid-light PT Network Camera DS-2DE2C400MWG-E
| Specification | ||
| Camera | ||
| Image Sensor | 1/3″ Progressive Scan CMOS | |
| Max. Resolution | 2560 × 1440 | |
| Min. Illumination | Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with light | |
| Lens | ||
| Focal Length | 2.8 mm, 4 mm | |
| FOV | 2.8 mm, horizontal FOV 94°, vertical FOV 49°, diagonal FOV 114° 4 mm, horizontal FOV 70°, vertical FOV 35°, diagonal FOV 85° | |
| Aperture | F1.6 | |
| Illuminator | ||
| Supplement Light Type | IR, White Light | |
| Supplement Light Range | White light distance: up to 30 m, IR distance: up to 30 m | |
| IR Wavelength | 850 nm | |
| PTZ | ||
| Movement Range (Pan) | 0° to 345° | |
| Movement Range (Tilt) | 0° to 80° | |
| Pan Speed | Up to 25°/s | |
| Tilt Speed | Up to 20°/s | |
| Video | ||
| Main Stream | 50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720) | |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360) | |
| Video Compression | H.265, H.264, MJPEG | |
| Video Bit Rate | 32 Kbps to 8 Mbps | |
| H.264 Type | Baseline profile, Main profile, High profile | |
| H.265 Type | Main profile | |
| Audio | ||
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM//AAC-LC | |
| Audio Bit Rate | 16 Kbps (G.722.1)/64 Kbps (G.711)/32 to 192 Kbps (MP2L2)/16 Kbps (G.726)/16 to 64 Kbps (AAC-LC)/8 to 48 Kbps (PCM) | |
| Audio Sampling Rate | 8 kHz, 16 kHz | |
| Environment Noise Filtering | Yes | |
| Network | ||
| Protocols | IPv4/IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, DNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour | |
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK | |
| Image | ||
| Image Settings | Saturation, brightness, contrast, and sharpness adjustable by client software or web browser | |
| Wide Dynamic Range (WDR) | Digital WDR | |
| Image Enhancement | BLC, HLC, 3D DNR | |
| Interface | ||
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port | |
| On-board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB | |
| Built-in Microphone | 1 built-in microphone | |
| Built-in Speaker | 1 built-in speaker | |
| Event | ||
| Basic Event | Motion detection (support alarm triggering by specified target type (human)), video tampering alarm, exception | |
| Linkage | Upload to FTP/memory card, notify surveillance center, send email, trigger capture, audible warning, auto-tracking lite | |
| General | ||
| Power | 12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, 36 V to 57 V, 0.2 A to 0.3 A, max. 10.5 W | |
| Dimension | Camera dimension: 163.9 mm × 185.8 mm × 131.9 mm (6.45″ × 7.31″ × 5.19″) With package dimension: 224 mm × 164 mm × 230 mm (8.82″ × 6.46″ × 9.06″) | |
| Weight | Camera weight: 600 g (1.32 lb.) With package weight: 900 g (2.0 lb.) | |
| Material | Plastic | |
| Operating Condition | -30 °C to 40 °C (-22 °F to 104 °F). Humidity 90% or less (non-condensing) | |
| General Function | Mirror, password protection, watermark | |
| Approval | ||
| EMC | CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014) | |
| Safety | CB (IEC 62368-1: 2014 + A11), CE-LVD (EN 62368-1: 2014/A11: 2017) | |
| Environment | CE-RoHS (2011/65/EU), Reach (Regulation (EC) No 1907/2006) | |
| Protection | IP66 (IEC 60529-2013) | |
